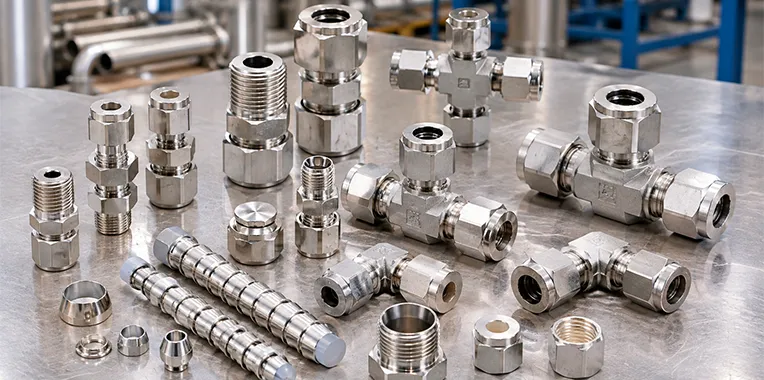

Ganpat Metal Pvt. Ltd. handles SS 304 tube fittings requirements for industrial instrumentation, tubing connections and process equipment. The range includes fitting configurations such as male connectors, elbows, reducing elbows, bulkhead connectors and tees, subject to the specified product design and availability.
SS 304 tube fittings must match the tube outside diameter, connection type, thread specification and operating conditions of the installation. Ganpat Metal can review enquiries based on technical drawings, part numbers, material specifications and purchase schedules to help define the required fitting configuration.
SS 304 is an austenitic stainless steel grade used in a variety of industrial tubing and fluid-handling systems. Its suitability depends on the process medium, temperature, pressure and other service conditions.
The fitting configuration determines how the component connects to the tubing or equipment. Male connectors provide a threaded interface, elbows change the direction of a line, tees create branch connections, and bulkhead connectors provide connections through a panel or partition.
For buyers sourcing multiple grades or fitting configurations, the broader SS Tube Fittings category page provides access to the parent product range.
Final dimensions, thread types, pressure ratings, available configurations and documentation must be confirmed for the specific fitting and purchase order.
| Specification | Details |
|---|---|
| Product | SS 304 Stainless Steel Tube Fittings |
| Grade | SS 304 |
| UNS | S30400 |
| Werkstoff No. | 1.4301 |
| JIS | SUS304 |
| EN Designation | X5CrNi18-10 |
| Material Standards | ASTM A276, ASTM A479 and other applicable standards, subject to product form and specification |
| Thread Options | NPT, BSPT and BSPP, where available |

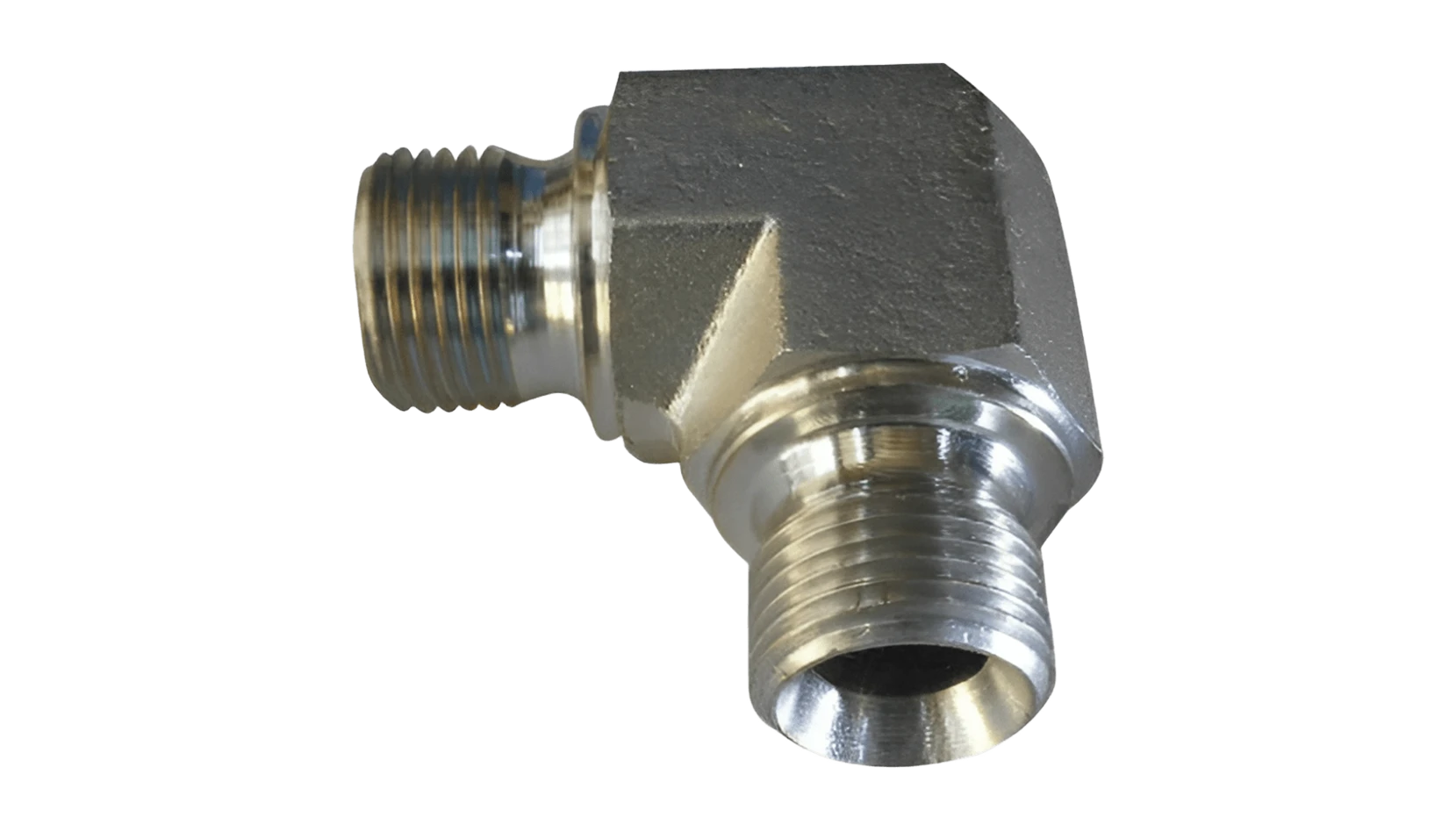

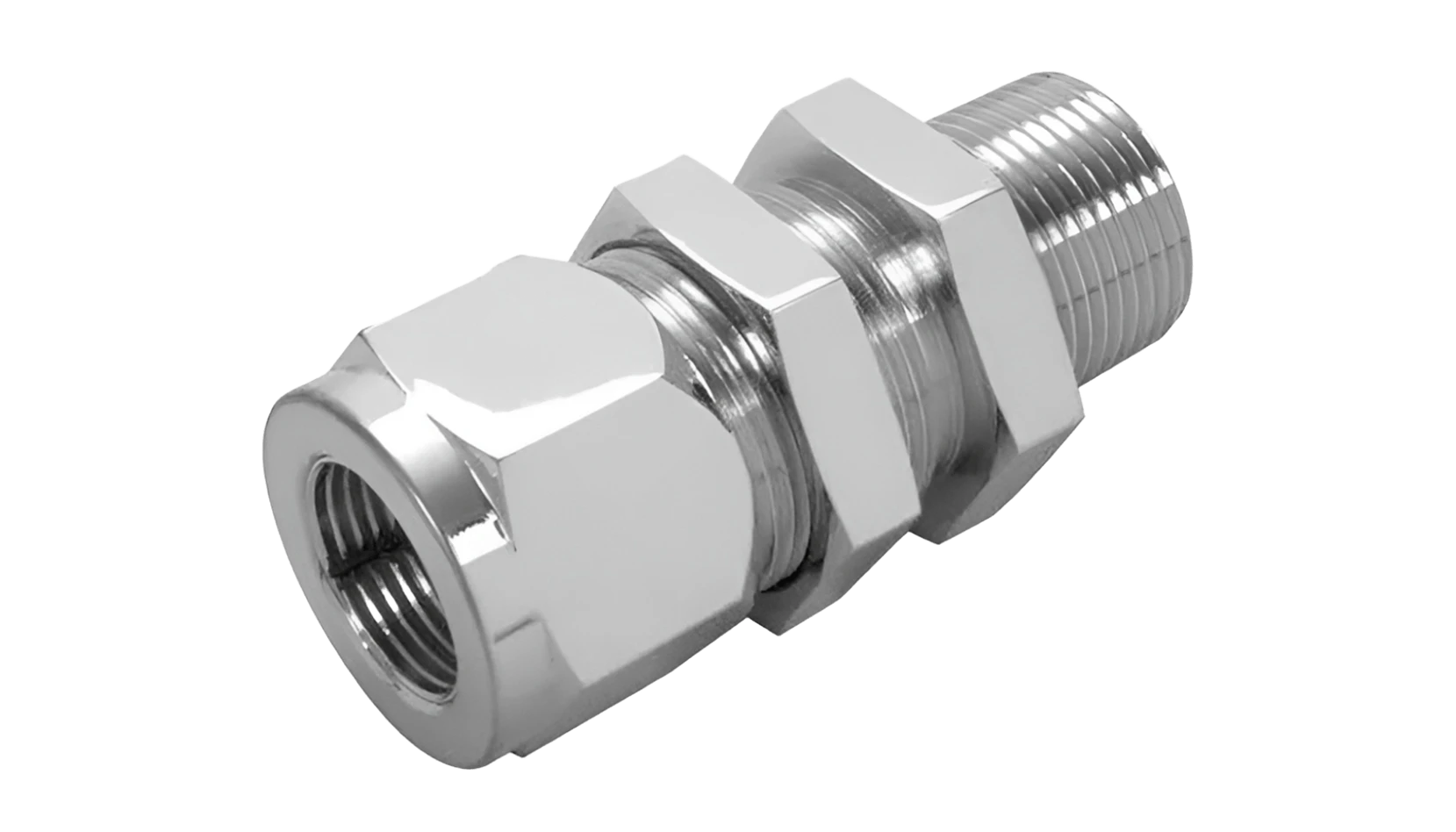

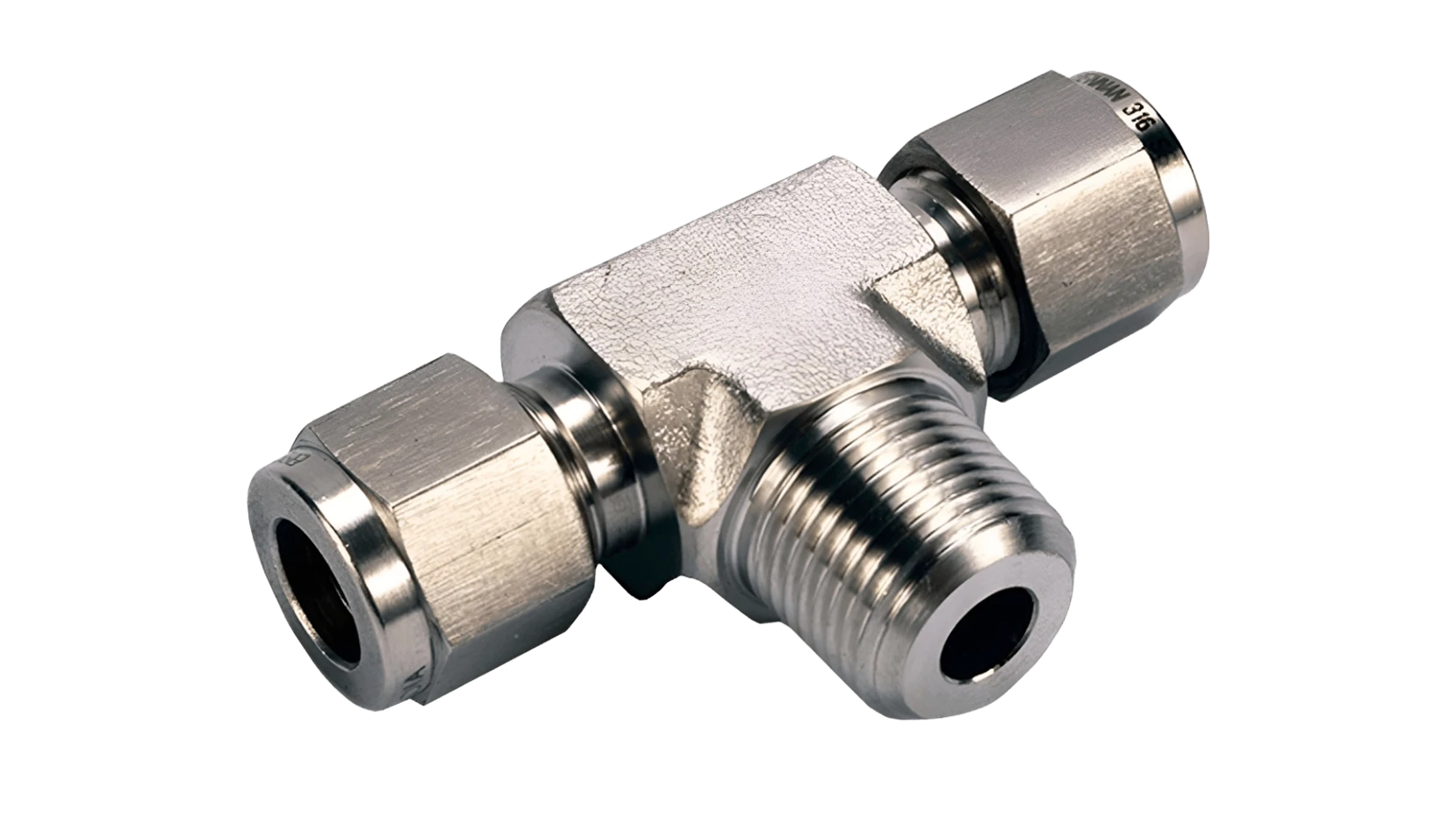

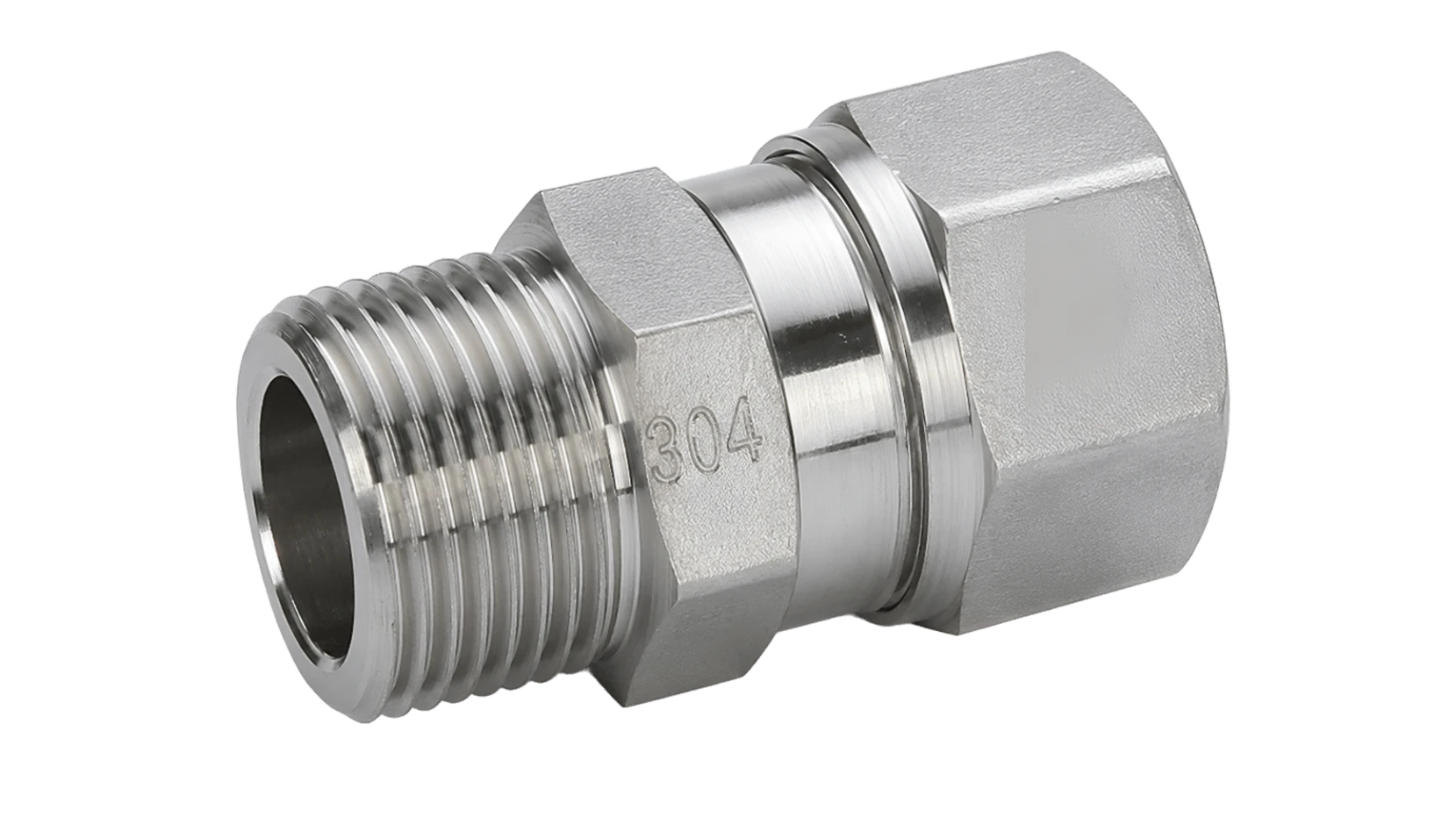

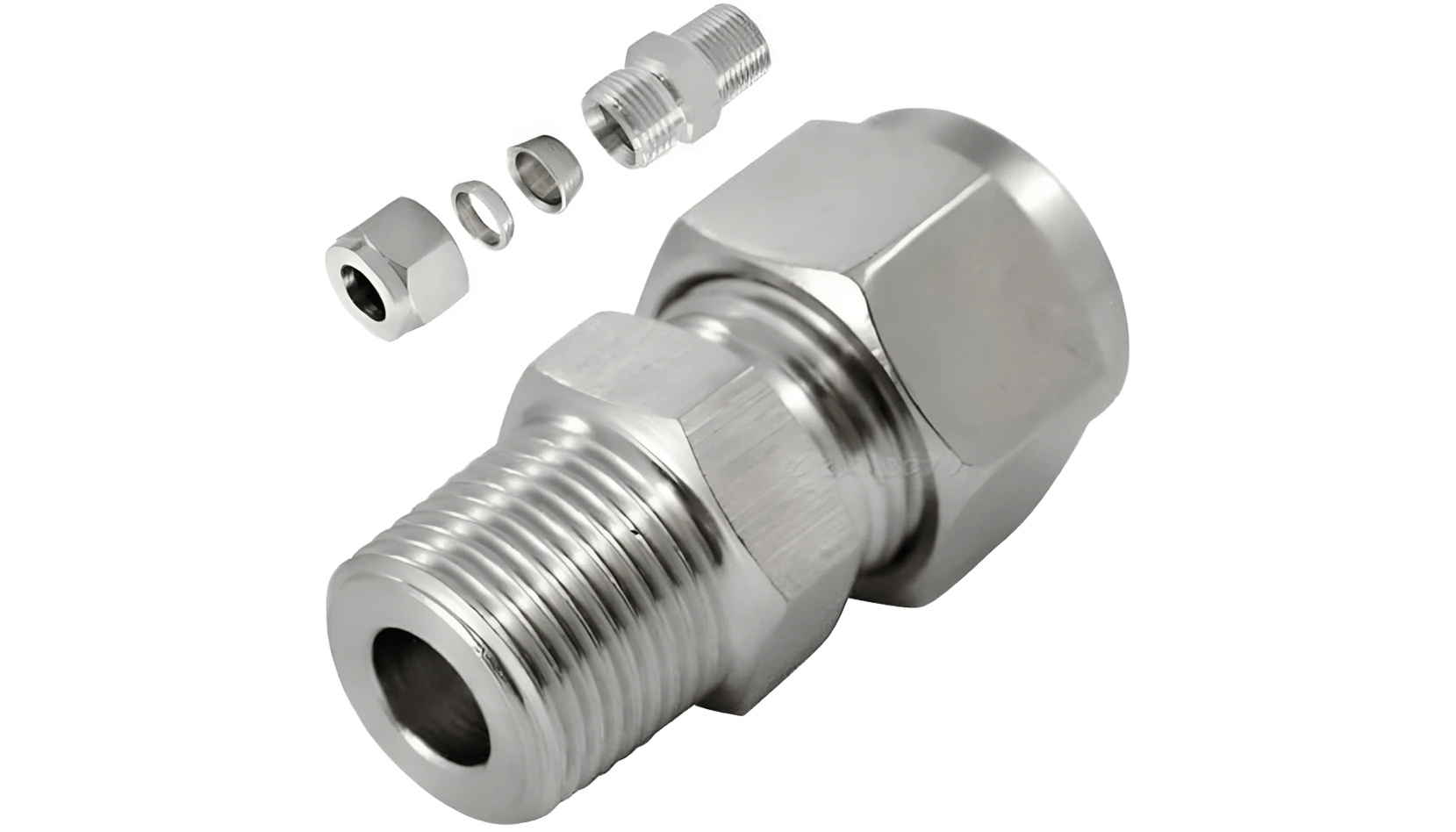

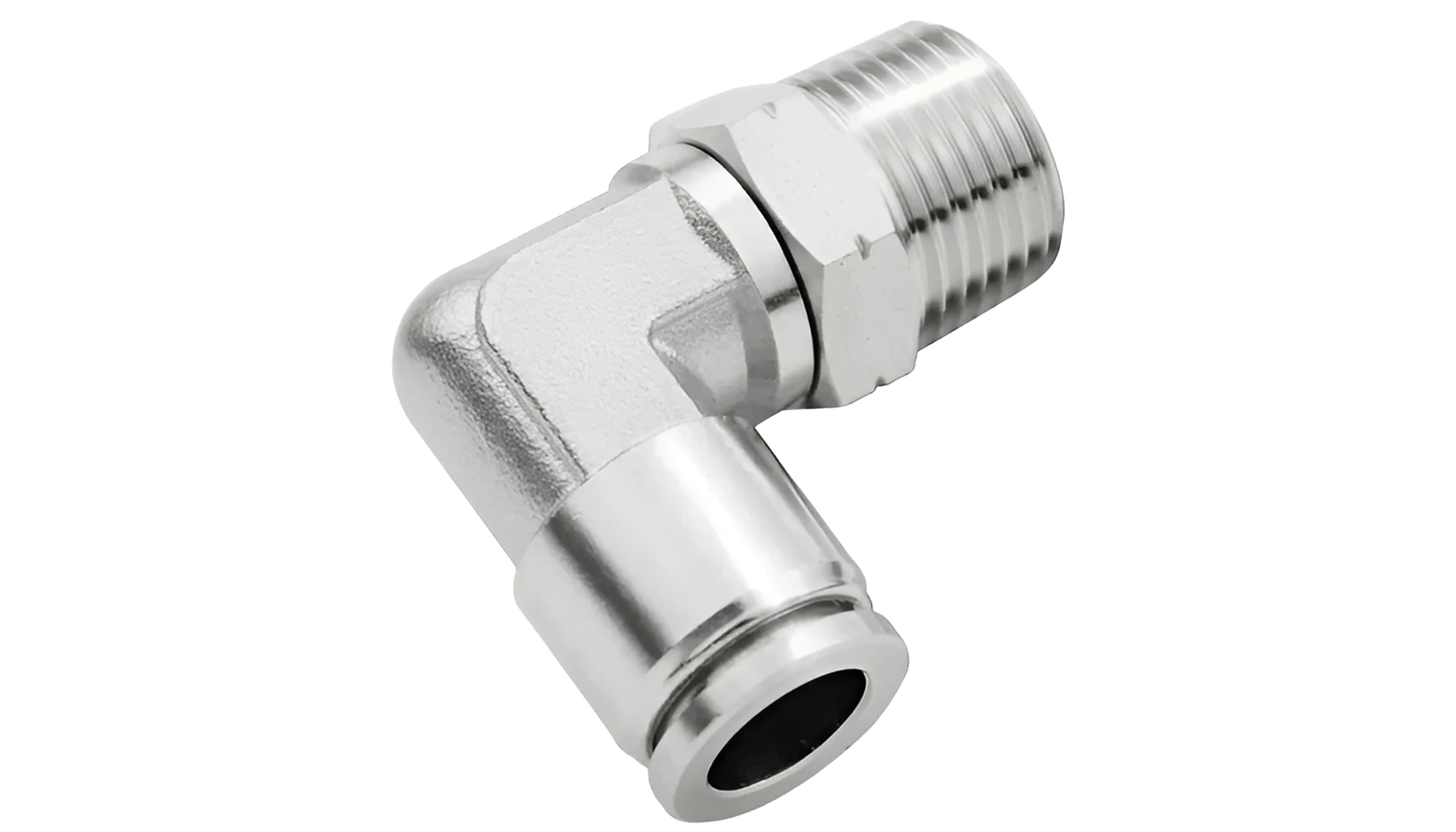

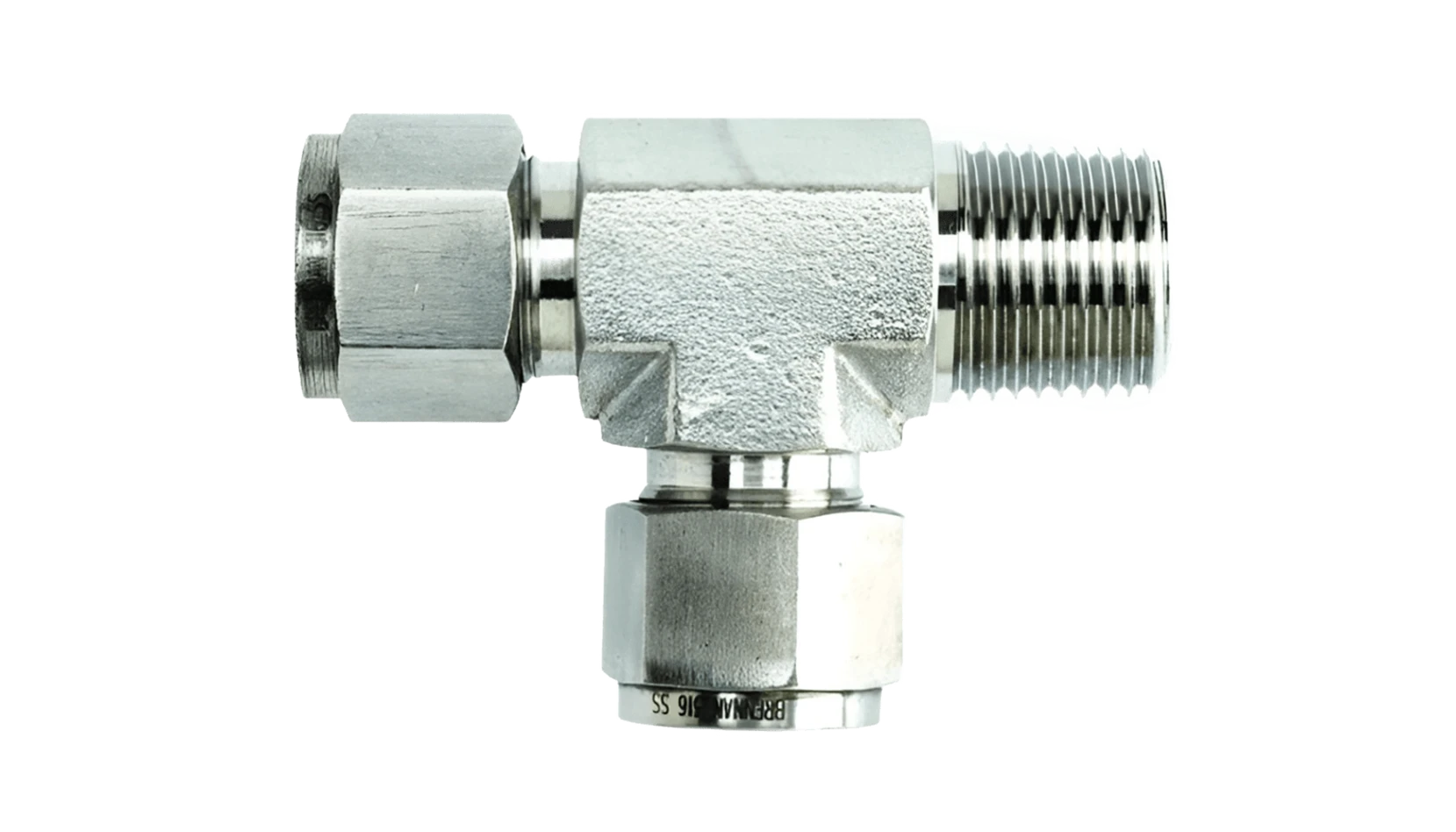

| Fitting Types | Male connectors, elbows, reducing elbows, bulkhead connectors, run tees and branch tees |
| Size | Confirm for the specific fitting type and connection |
| Pressure Rating | Confirm against the fitting design and manufacturer's specifications |
| Inspection | As specified in the purchase order |
| Documentation | Material certificates and inspection records, where agreed |
| Standard | Designation |
|---|---|
| Stainless Steel Grade | SS 304 |
| UNS | S30400 |
| Werkstoff No. | 1.4301 |
| JIS | SUS304 |
| BS | 304S31 |
| GOST | 08Х18Н10 |
| AFNOR | Z7CN18-09 |
| EN | X5CrNi18-10 |
The material test certificate should be checked against the applicable specification and heat analysis for the supplied material.
| Element | SS 304 Composition |
|---|---|
| Carbon (C) | 0.08% max. |
| Manganese (Mn) | 2.00% max. |
| Silicon (Si) | 0.75% max. |
| Phosphorus (P) | 0.045% max. |
| Sulphur (S) | 0.030% max. |
| Chromium (Cr) | 18.00–20.00% |
| Molybdenum (Mo) | Not specified in the supplied reference |
| Nickel (Ni) | 8.00–11.00% |
| Nitrogen (N) | Not specified in the supplied reference |
| Property | Reference Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | Approximately 1400°C |
| Minimum Tensile Strength | 515 MPa (75,000 psi) |
| Minimum Yield Strength, 0.2% Offset | 205 MPa (30,000 psi) |
| Elongation | 35% |
Ganpat Metal handles enquiries for SS 304 fitting configurations according to the specified connection arrangement and application.
The exact design, tube size, thread dimensions and connection compatibility should be confirmed against the product drawing or part number before ordering.
The fitting's pressure rating depends on its design, dimensions, connection mechanism, material condition and operating temperature. Pressure figures must be confirmed for the actual product rather than assigned to all SS 304 fittings as a single range.
Common thread options include:
These thread types are not interchangeable in every application. The thread form, size, mating component and sealing method must match the connection design.
When requesting a quotation, specify the required thread standard and size, tube outside diameter, fitting type and operating pressure. Include the operating temperature and service medium where these affect product selection.
SS 304 tube fittings may be specified for industrial tubing connections where the grade and fitting design are suitable for the service conditions.
Application suitability depends on the medium, temperature, pressure, connection design and other operating conditions. SS 304 should not be assumed suitable for every chemical or corrosive service.
Inspection and documentation requirements should be agreed during the enquiry stage. Depending on the purchase order and applicable specification, the required records may include:
The inspection plan should reflect the actual fitting design and contractual requirements. Confirm which certificates and tests are available for the specific product before placing the order.
Ganpat Metal Pvt. Ltd. handles stainless steel product enquiries against defined material and procurement specifications.
Availability, manufacturing scope, applicable standards, testing arrangements and delivery commitments should be confirmed for each order.
Ganpat Metal Pvt. Ltd. handles export enquiries for stainless steel products and industrial project requirements. SS 304 tube fitting enquiries can be prepared for the following destinations, subject to order specifications and delivery arrangements:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For export enquiries, provide the required fitting type, SS 304 material designation, tube size, thread details, quantity, destination and required inspection or material documentation. Confirm packing, shipping and delivery requirements when requesting the quotation.
Ganpat Metal handles SS 304 tube fitting enquiries for buyers requiring defined material grades, fitting configurations and connection details. To help establish the required product, submit the tube outside diameter, thread specification, fitting type, quantity and any applicable drawing or part number.
For project procurement, the enquiry should also state the required material standard, pressure and temperature conditions, inspection level and documentation package. This helps clarify the specification before a quotation is prepared.
If your project requires fittings in other stainless steel grades or a wider range of connection configurations, visit our SS Tube Fittings category page. It provides the broader product context for buyers comparing grade options or preparing purchase schedules covering multiple stainless steel tube fitting requirements.
Send Ganpat Metal the following details to request pricing:
