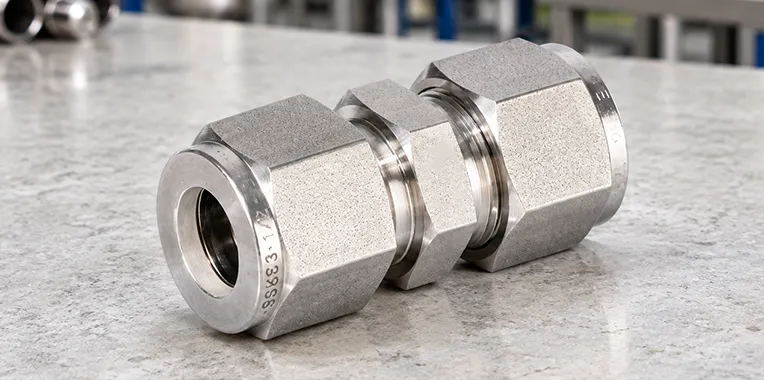

Ganpat Metal Pvt. Ltd. handles SS 316 tube fittings requirements for industrial instrumentation, process tubing and equipment connections. The product configurations covered by enquiries include tube-to-male, tube-to-union and tube-to-female fittings, along with other specified connection designs subject to availability.
SS 316 tube fittings must match the tubing dimensions, thread specification, end connection and operating conditions of the installation. Ganpat Metal can review enquiries based on technical drawings, part numbers, material specifications and purchase schedules to help identify the required fitting configuration.
SS 316 is a molybdenum-bearing austenitic stainless steel grade used in industrial tubing and instrumentation systems where the material is suitable for the service conditions. The grade is commonly specified for applications that require different corrosion-resistance characteristics from standard SS 304, although actual suitability depends on the process medium, concentration, temperature and other operating factors.

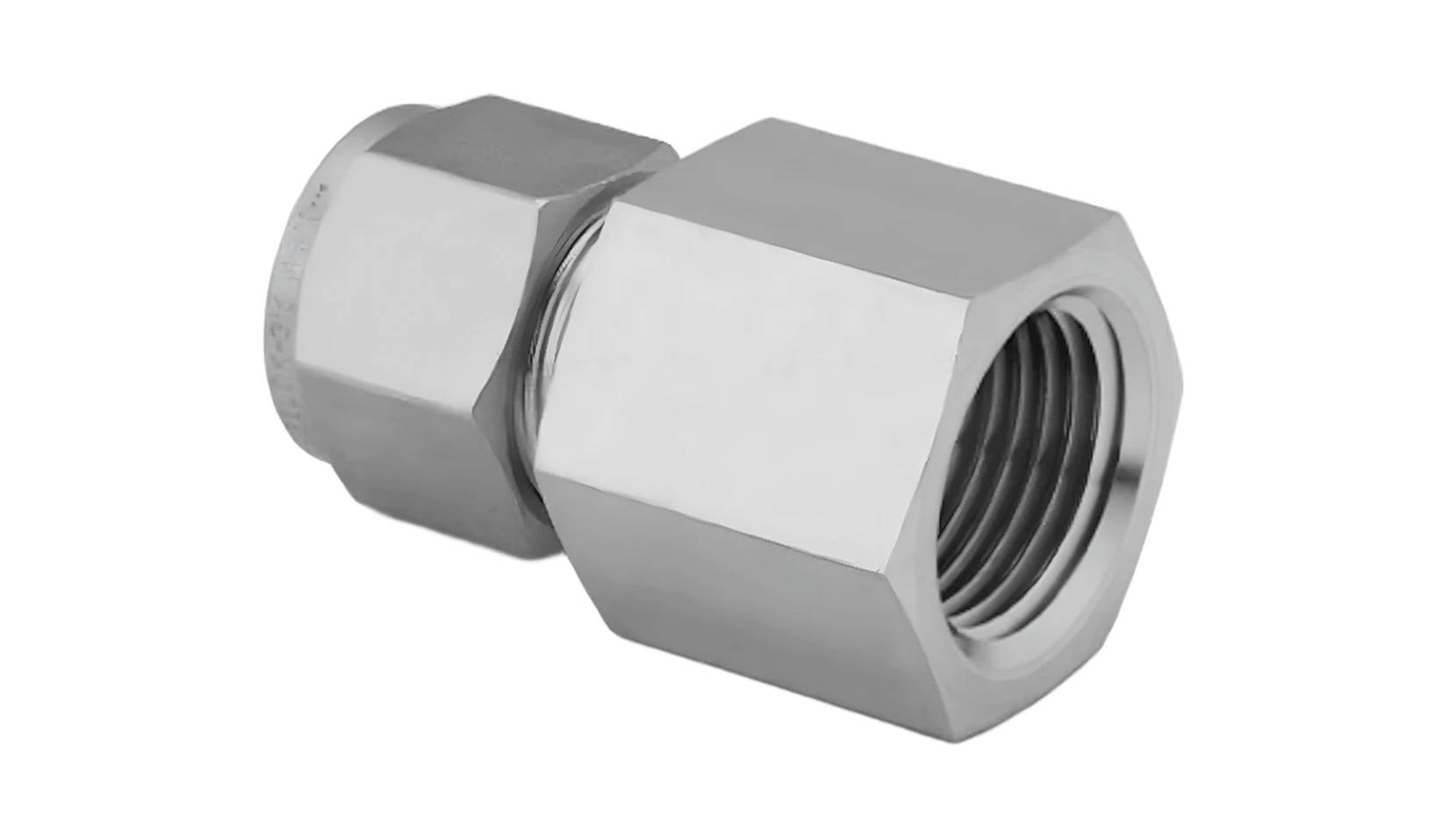

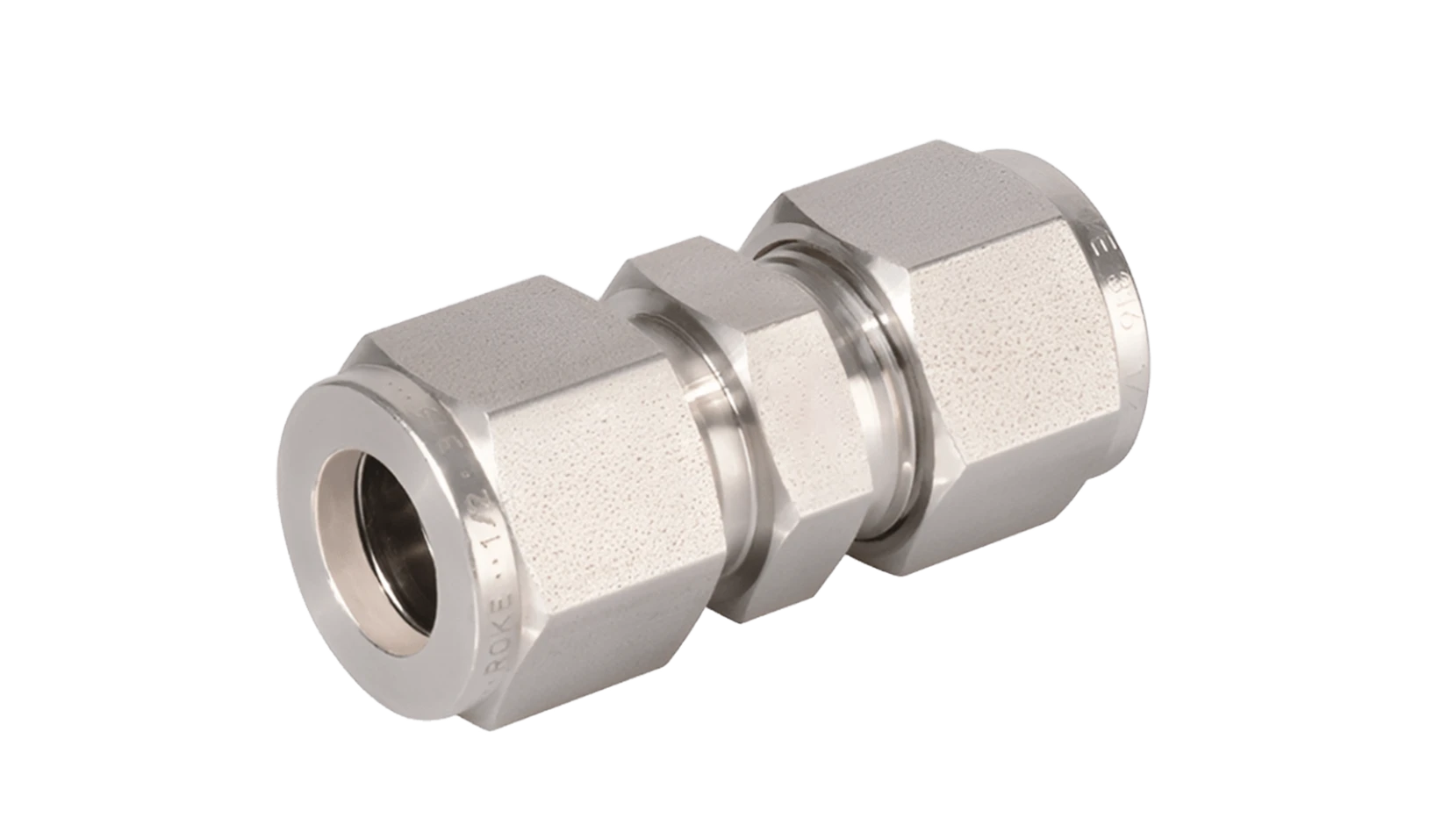

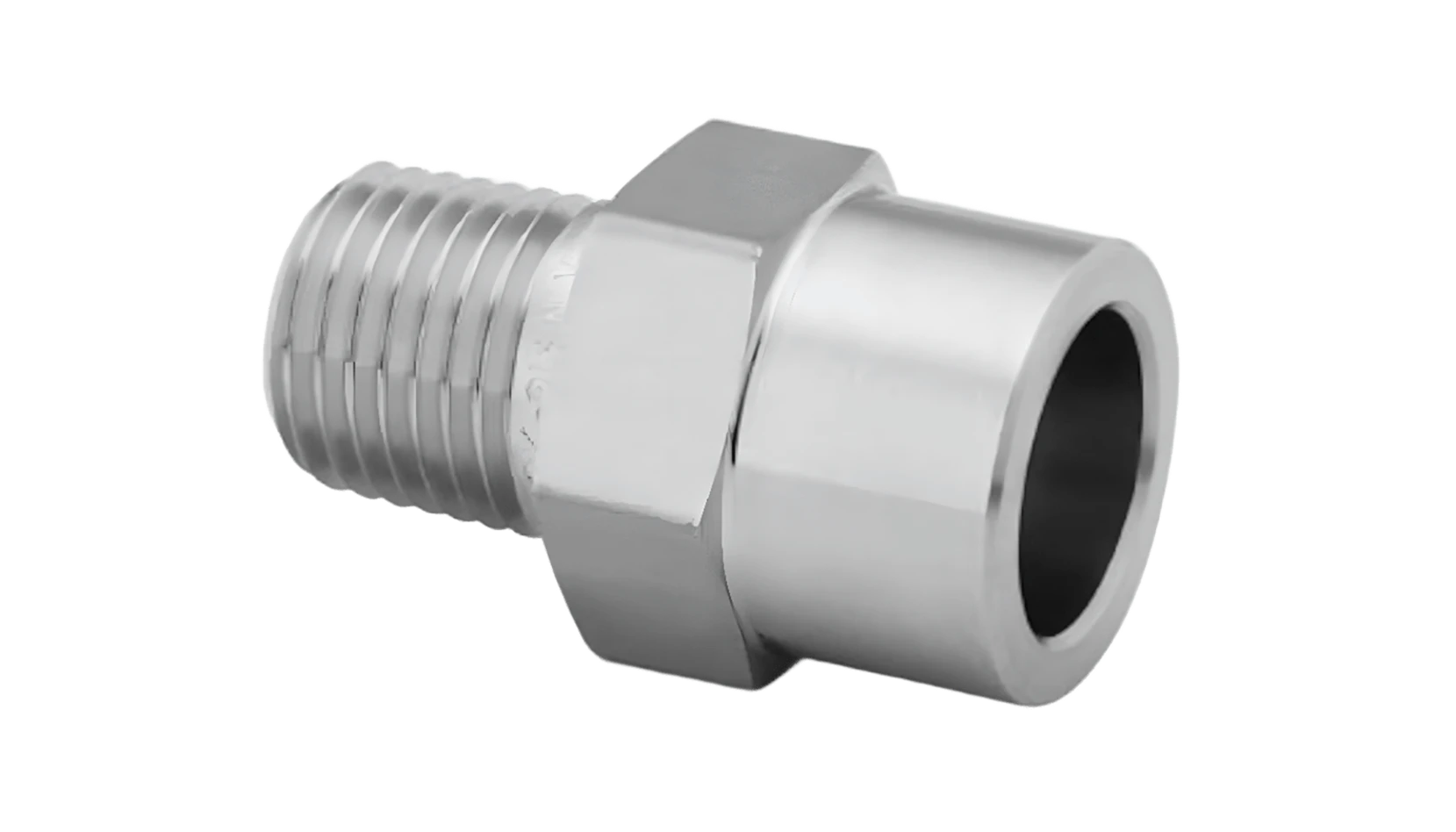

The fitting configuration determines how the tubing connects to instruments, valves, equipment or other tube sections. Tube-to-male fittings provide a threaded interface, tube-to-union fittings join compatible tube connections, and tube-to-female fittings connect tubing to a specified female-threaded port.
For projects involving more than one stainless steel grade or fitting configuration, the broader SS Tube Fittings category page provides access to the parent product range.
Final dimensions, thread types, pressure ratings, available configurations and documentation must be confirmed for the specific fitting and purchase order.
| Specification | Details |
|---|---|
| Product | SS 316 Stainless Steel Tube Fittings |
| Material Grade | SS 316 |
| UNS | S31600 |
| Werkstoff No. | 1.4401 |
| Material Standards | ASTM A479, ASTM A182 and other applicable standards, subject to product form and specification |
| Fitting Configurations | Tube-to-male, tube-to-union and tube-to-female |
| Reference Size Range | 3 mm to 50 mm and 1/8" to 2", subject to product confirmation |
| Thread Options | BSPT, NPT and BSPP, where available |

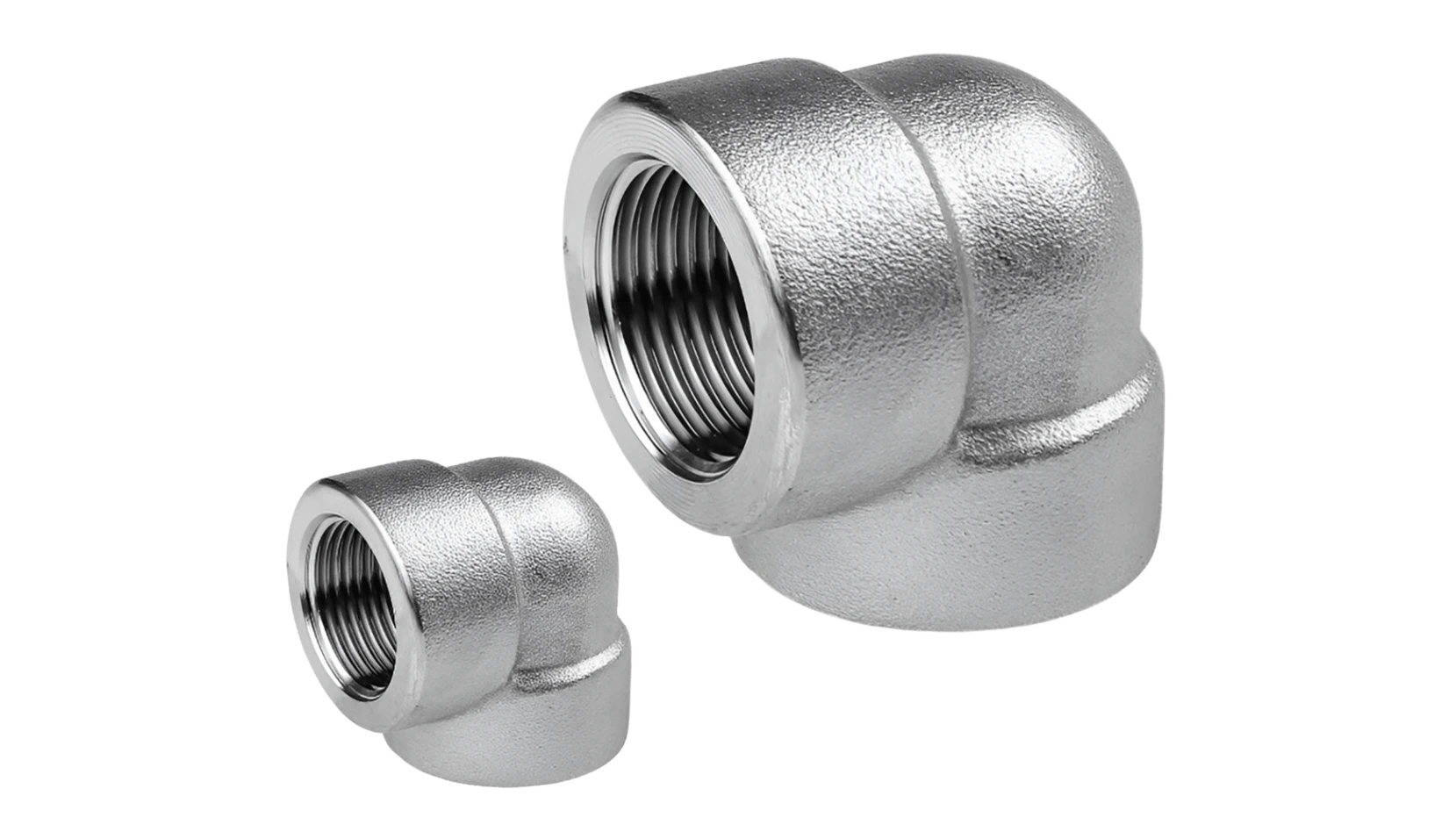

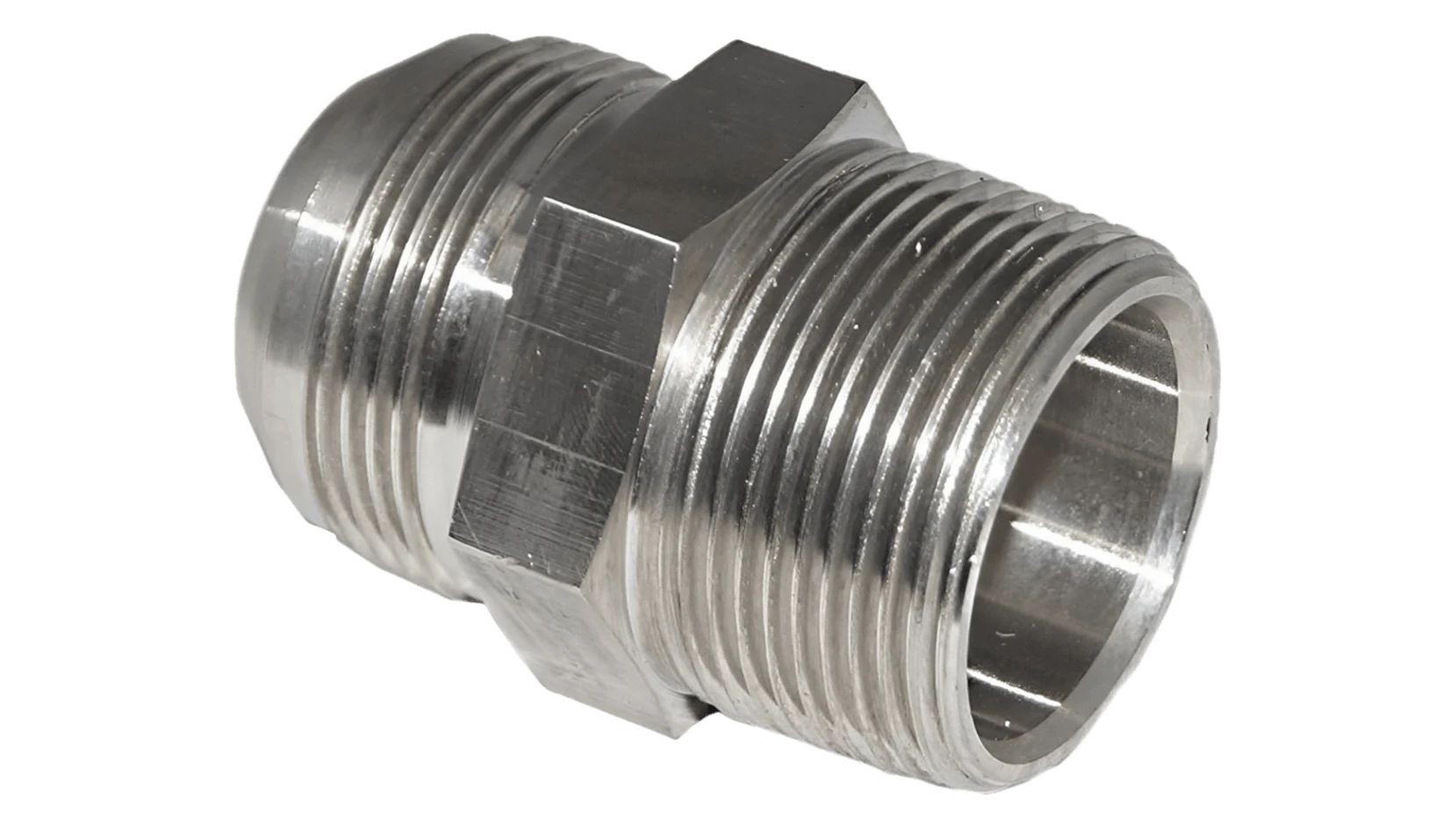

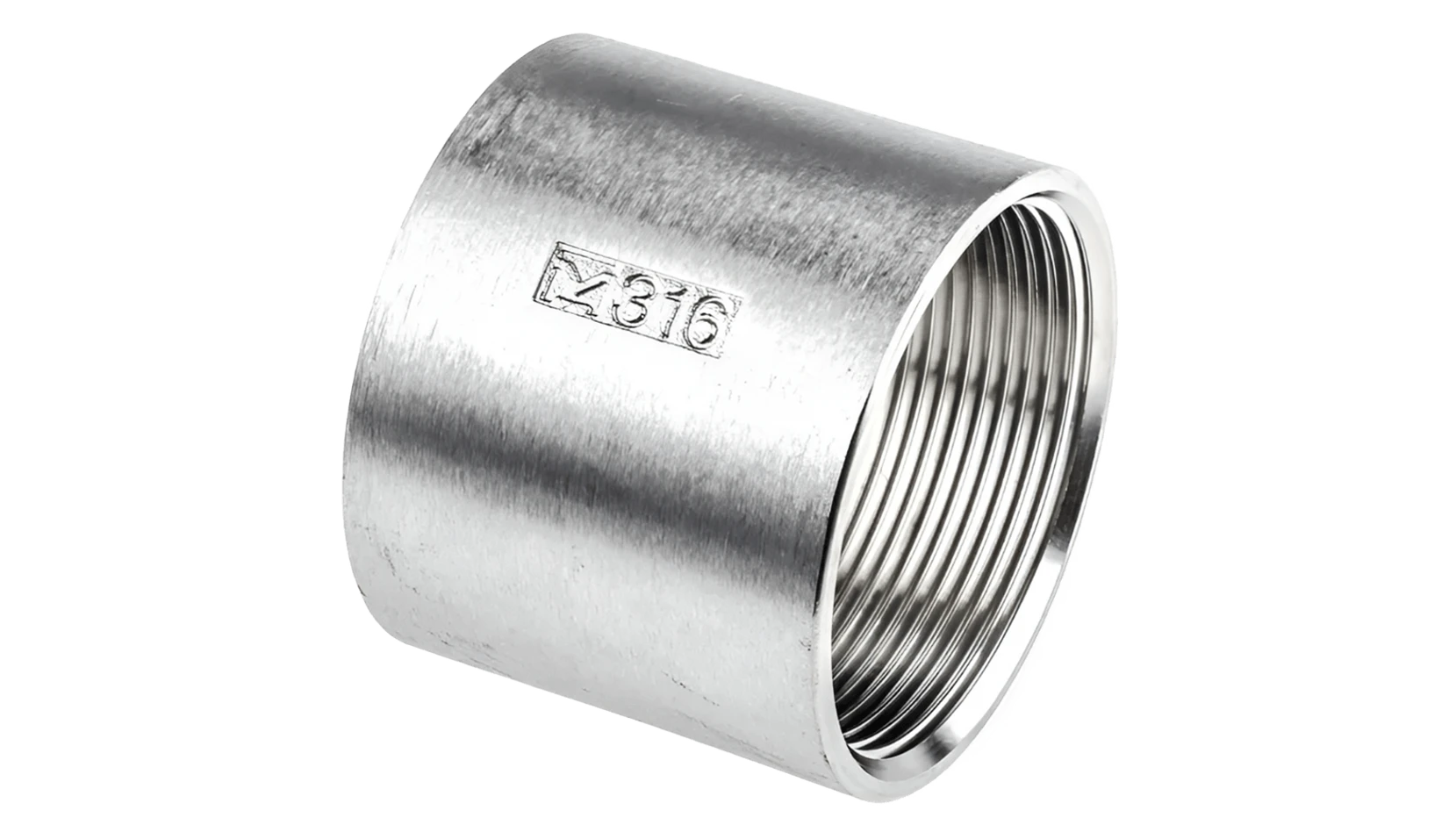

| End Connections | Threaded, welding or JIC, where available |
| Pressure Ratings | Confirm for the specific fitting design and size |
| HS Code Reference | 73072900, subject to customs classification confirmation |
| Inspection | As specified in the purchase order |
| Documentation | Material certificates and inspection records, where agreed |
| Standard or Designation | Reference |
|---|---|
| Stainless Steel Grade | SS 316 |
| UNS | S31600 |
| Werkstoff No. | 1.4401 |
| DIN Material Reference | 1.4401 |
| ASTM Material Reference | Confirm the applicable product form and standard |
| Element | SS 316 Composition |
|---|---|
| Carbon (C) | 0.08% max. |
| Manganese (Mn) | 2.00% max. |
| Sulphur (S) | 0.030% max. |
| Nitrogen (N) | 0.10% max. |
| Molybdenum (Mo) | 2.00–3.00% |
| Silicon (Si) | 0.75% max. |
| Chromium (Cr) | 16.00–18.00% |
| Phosphorus (P) | 0.045% max. |
| Nickel (Ni) | 10.00–14.00% |
| Property | SS 316 Reference Value |
|---|---|
| Minimum Yield Strength, 0.2% Proof | 205 MPa |
| Minimum Tensile Strength | 515 MPa |
| Minimum Elongation | 40% |
| Maximum Brinell Hardness | 217 HB |
| Maximum Rockwell B Hardness | 95 HRB |
The required fitting type depends on the tubing arrangement, equipment interface and connection design.
The actual fitting range, dimensions and end connections should be confirmed against the product catalogue, drawing or part number before ordering.
Correct dimensions and thread identification are essential when selecting replacement fittings or preparing a new tubing assembly. The tube outside diameter, nominal thread size and thread form must match the mating component.
The supplied reference includes banjo fitting dimensions and BSP/NPT thread information. However, some entries appear inconsistent, particularly for larger nominal sizes. These figures should be checked against the original manufacturer drawing or verified dimensional schedule before being used as a published dimensional table.
When requesting a quotation, specify:
BSP and NPT threads use different thread forms and profiles. They should not be treated as interchangeable without confirming the connection design and sealing method.
The supplied reference mentions pressure ratings of 1,000, 3,000, 6,000 and 10,000 psi. These figures should only be assigned to specific fitting designs and sizes after confirmation against the manufacturer's pressure-rating documentation.
The actual pressure limit depends on the fitting construction, tube dimensions, connection mechanism, temperature and installation requirements. A rating for one fitting configuration should not automatically be applied to another.
Common connection options include:
For an accurate quotation, provide the fitting type, tube outside diameter, thread standard, operating pressure, temperature and service medium.
SS 316 tube fittings may be specified for industrial systems where the material grade, fitting design and connection are suitable for the operating conditions.
Final suitability depends on the process medium, concentration, temperature, pressure and connection design. Confirm the requirements against the engineering specification before selecting the fitting.
Inspection requirements should be established at the enquiry stage and matched to the fitting design and purchase specification. Depending on the order, the required documentation may include:
Not every test applies to every fitting. Confirm the available certificates, inspection scope and traceability requirements for the specific product before placing the order.
Ganpat Metal Pvt. Ltd. handles stainless steel product enquiries against defined material and procurement specifications.
Product availability, manufacturing scope, applicable standards, testing arrangements and delivery commitments should be confirmed for each order.
Ganpat Metal Pvt. Ltd. handles export enquiries for stainless steel products and industrial project requirements. SS 316 tube fitting enquiries can be prepared for the following destinations, subject to order specifications and delivery arrangements:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For export enquiries, provide the required fitting configuration, SS 316 material designation, tube size, thread details, quantity, destination and required inspection or material documentation. Packing, shipping and delivery requirements should also be confirmed during quotation.
Ganpat Metal handles SS 316 tube fitting enquiries for buyers requiring defined material grades, connection types and dimensions. Submit the fitting configuration, tube outside diameter, thread specification, quantity and applicable drawing or part number to help establish the required product.
For project procurement, include the applicable material standard, operating conditions, pressure requirements, inspection level and documentation package. These details help clarify the specification before a quotation is prepared.
If your project requires multiple stainless steel grades or a wider range of connection configurations, visit the SS Tube Fittings category page. It provides the broader product context for buyers comparing grades and sourcing different tube fitting types for industrial tubing systems.
Send Ganpat Metal the following details to request pricing:
