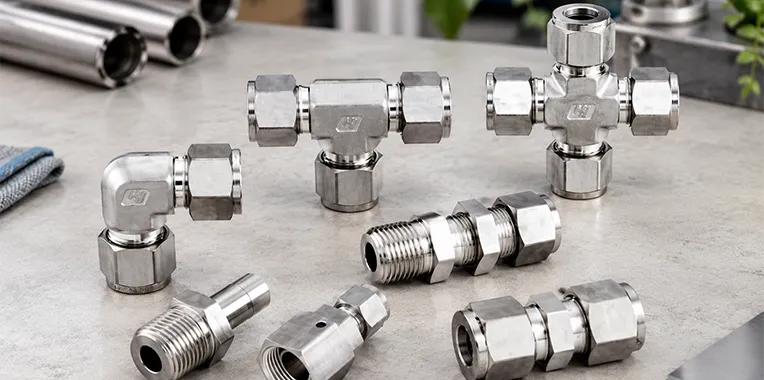

Ganpat Metal Pvt. Ltd. handles SS tube fittings requirements for industrial tubing, instrumentation and process connections. The right fitting depends on the tube outside diameter, connection type, material grade, thread specification and operating pressure and temperature.
For procurement teams, OEMs, engineering contractors and industrial buyers, the enquiry should identify the required fitting configuration and how it connects to the existing tubing or equipment. Ganpat Metal can review enquiries based on technical drawings, part numbers, specifications and purchase schedules.
Stainless steel tube fittings connect tubing to other tube sections, instruments, valves and
equipment. Depending on the design, they can create straight connections, change the
direction of a line, provide a branch connection or adapt tubing to a threaded
port.

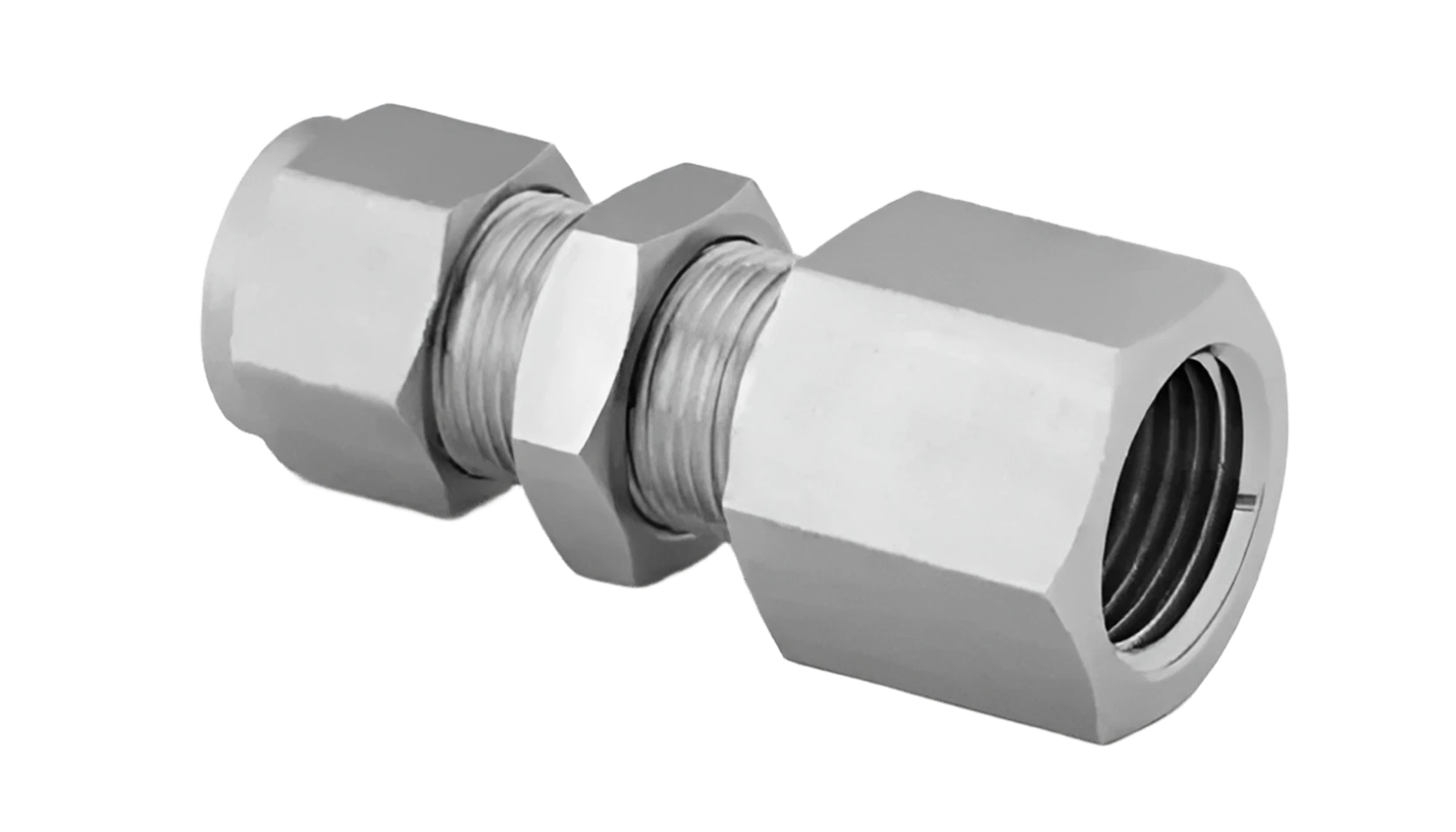

The required connection determines which fitting is suitable. Compression
fittings must match the tube outside diameter and the fitting system, while threaded
connectors must match the mating thread standard, size and sealing
arrangement.
Material selection is equally important. For general industrial
tubing connections, buyers can review the options available in SS 304 tube fittings for
industrial tubing connections when their specification calls for grade 304. Where the
service specification calls for molybdenum-bearing stainless steel, the SS 316 tube fittings
range for industrial tubing systems is a more relevant grade-specific reference.
Stainless steel tube fittings are selected according to the product type, material grade, connection design and dimensional requirements of the project.
| Specification | Details |
|---|---|
| Product | Stainless Steel Tube Fittings |
| Material Grades | SS 304, SS 316 and SS 316L, subject to availability |

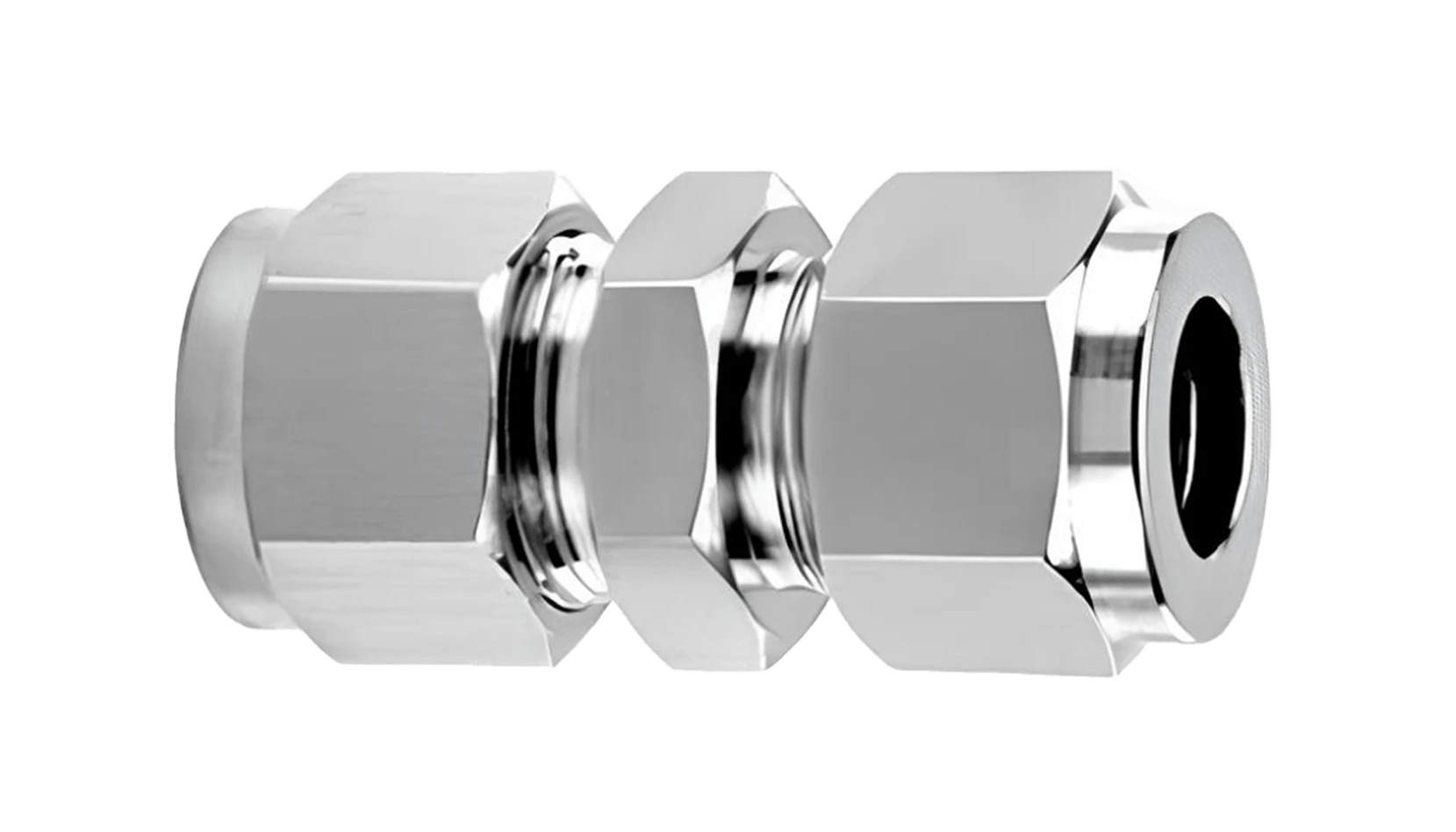

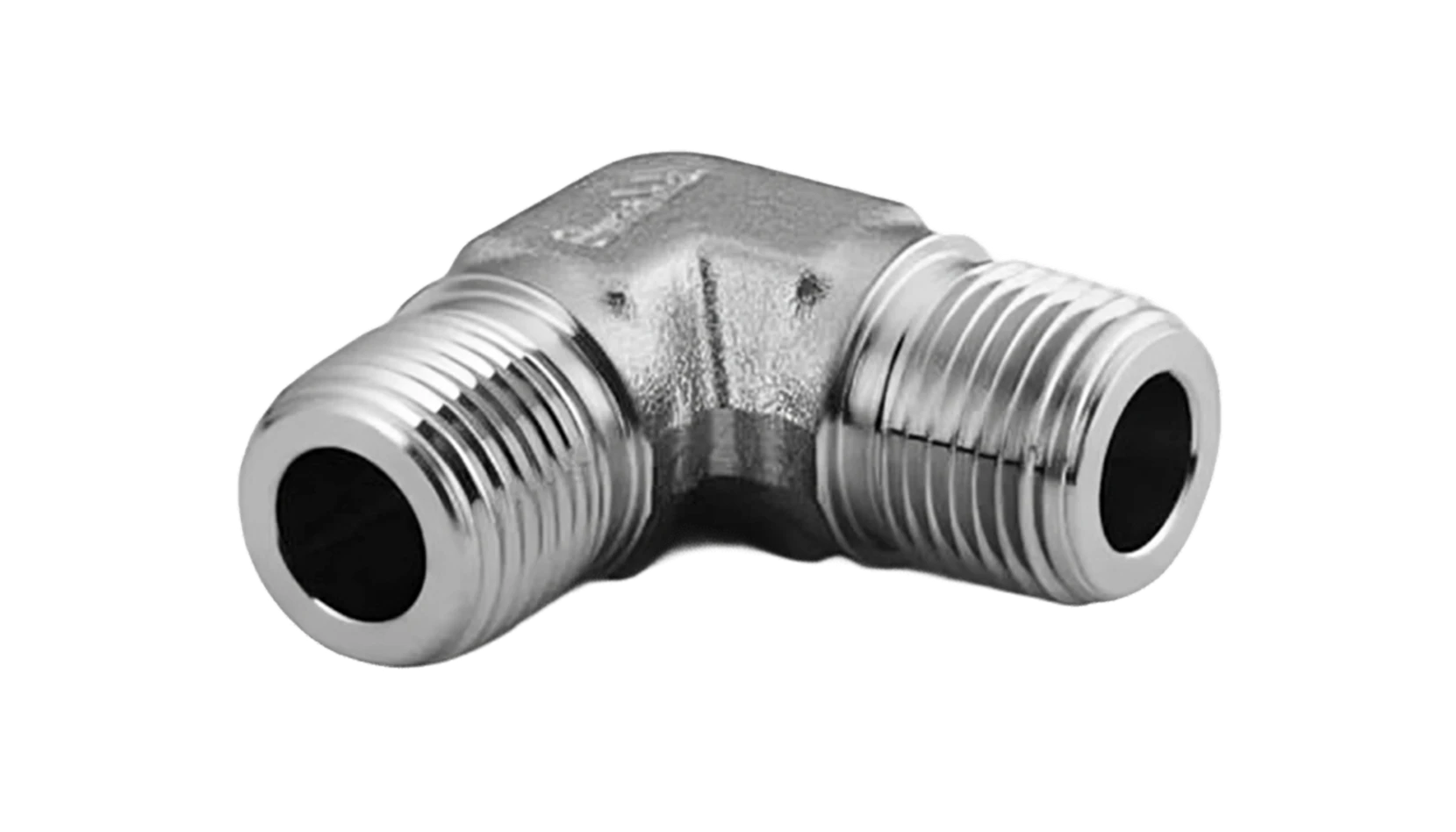

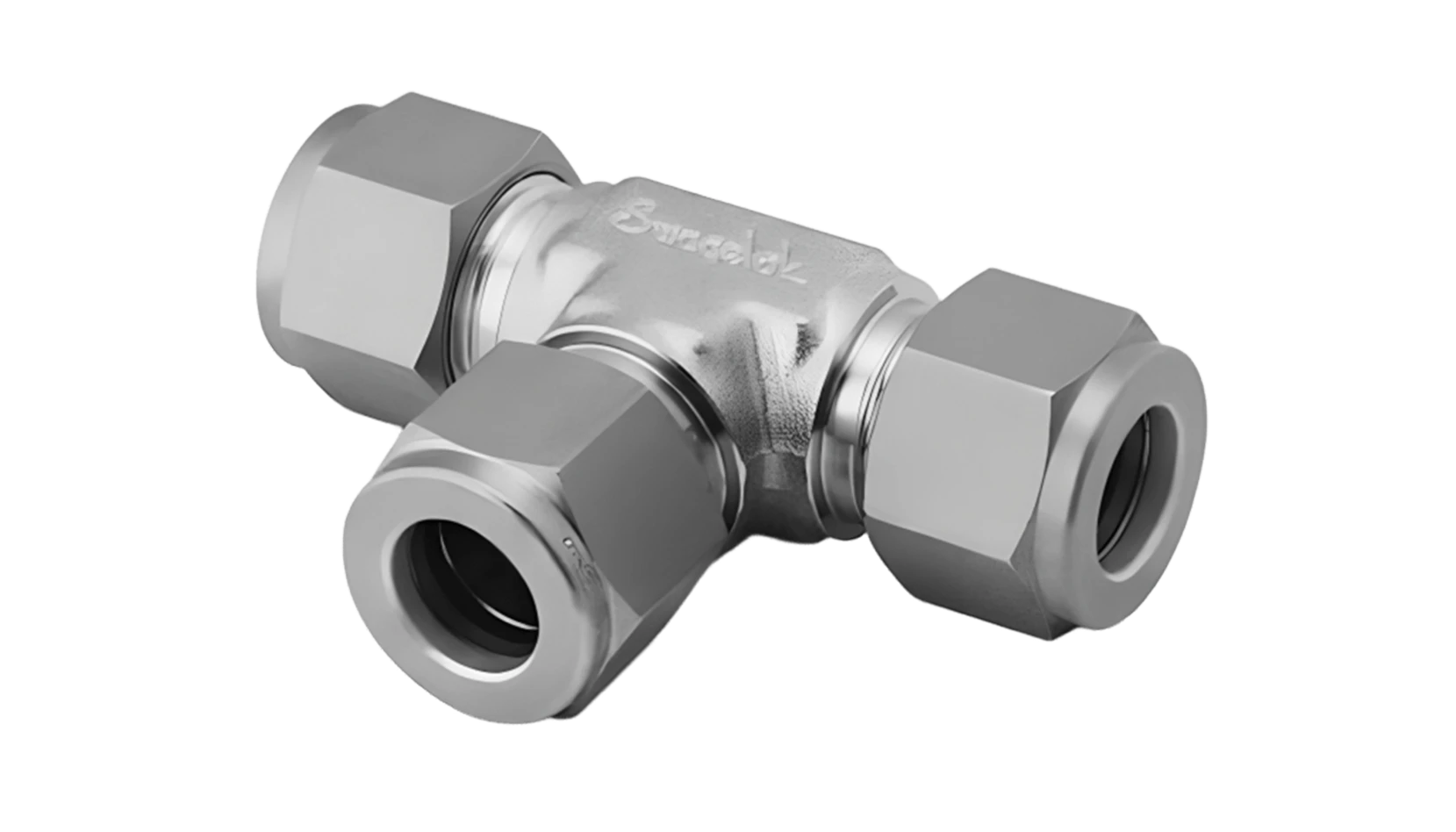

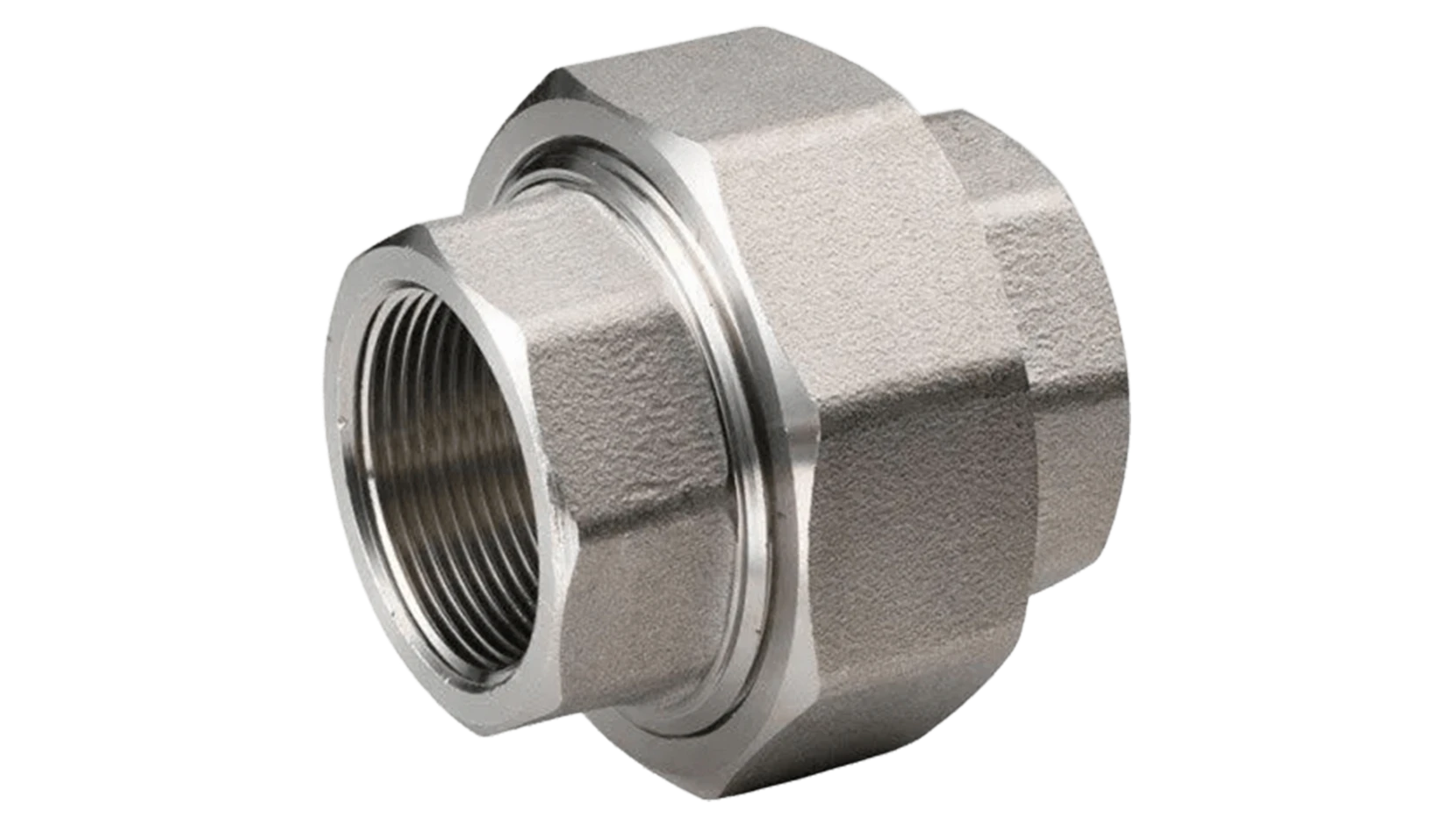

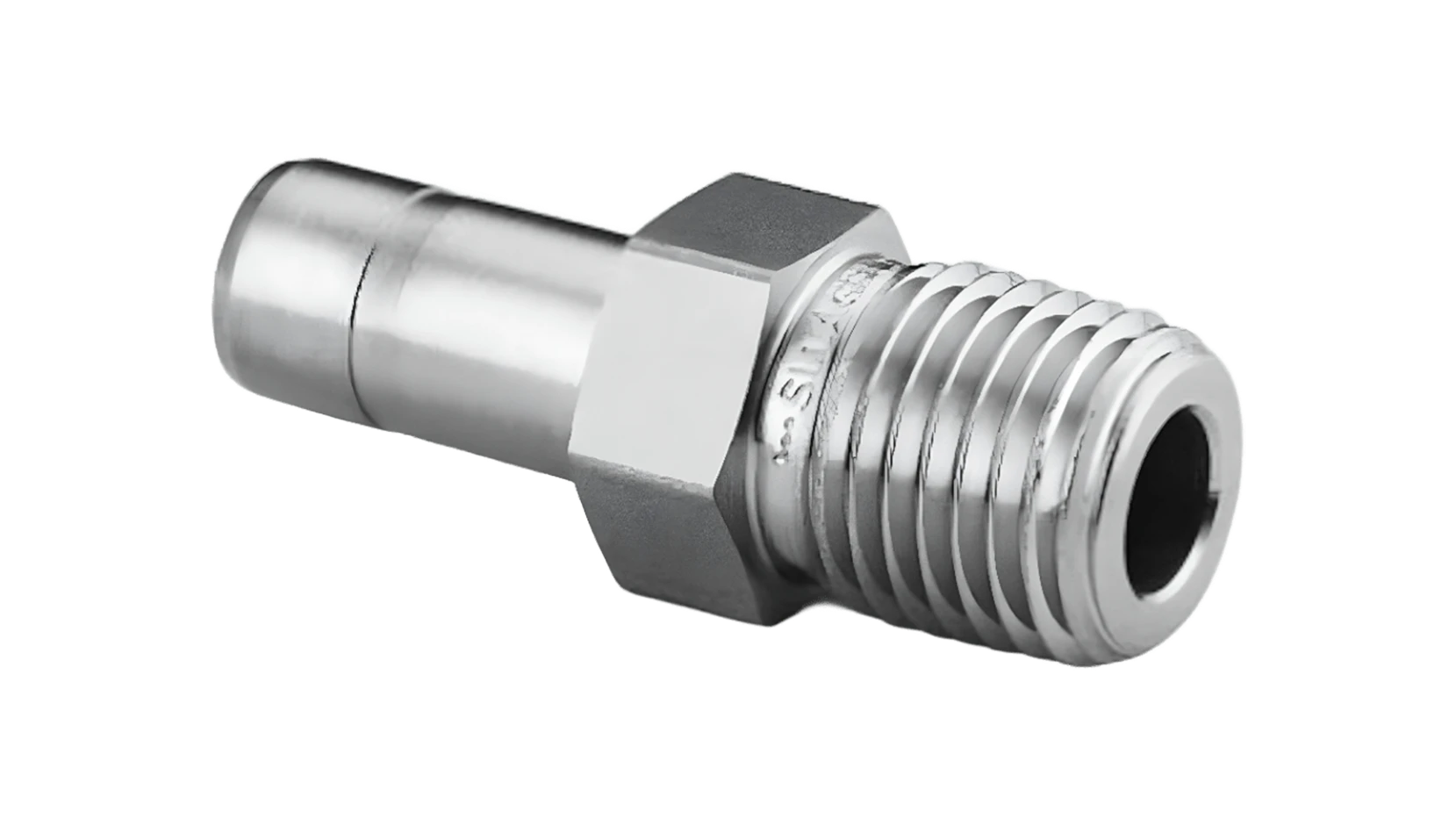

| Common Fitting Types | Unions, elbows, tees, connectors, adapters and other specified configurations |
| Connection Options | Compression, threaded and other specified connection designs |
| Tube Compatibility | Must match the specified tube outside diameter |
| Thread Options | NPT, BSPP, BSPT or metric, where applicable |
| Size Range | Confirm against the required fitting type and connection |
| Pressure Rating | According to the selected fitting design and manufacturer specification |
| Inspection | Dimensional, connection and other agreed inspections |
| Documentation | Material test certificates and inspection records, where specified |
For quotation accuracy, provide the fitting type, material grade, tube outside diameter, connection details, quantity and any inspection requirements. These details determine the applicable product configuration.
Select the fitting according to the connection layout, tube dimensions and equipment interface.
Availability and dimensions vary by fitting design. Confirm the required configuration rather than ordering solely by a general fitting name.
The fitting must match both the tube and the component to which it connects. Similar-looking connections are not necessarily interchangeable, particularly when thread forms or sealing methods differ.
Specify the following details when requesting a quotation:
NPT, BSPP, BSPT and metric threads should be identified separately. The thread form, pitch and sealing arrangement must match the mating component. A fitting's suitability should also be checked against the specified operating conditions, not inferred from its material grade alone.
SS 304 and SS 316 are common austenitic stainless steel grades used in industrial tubing systems. The correct choice depends on the process medium, operating conditions and material specification.
SS 304 is used in general industrial and fluid-handling applications where its material properties are suitable for the service conditions. It may be specified for tubing connections in equipment, utility lines and industrial assemblies.
If your purchase specification identifies grade 304, review the SS 304 tube fittings for industrial tubing connections page for the grade-specific product information. When enquiring, include the required fitting configuration, tube size and connection details so the product can be matched to your application.
SS 316 contains molybdenum, which improves its resistance to certain forms of corrosion compared with SS 304. It may be selected for process and instrumentation systems where the specified service conditions call for this grade. Actual suitability depends on the fluid, concentration, temperature and other operating factors.
For projects that specifically call for grade 316, the SS 316 tube fittings for industrial tubing systems page provides a more focused reference for the required material grade. Include the operating conditions and connection design in your enquiry to help confirm product suitability.
SS 316L is a low-carbon variant of SS 316. Its lower carbon content can reduce the risk of sensitisation during welding under appropriate conditions, making it relevant to some fabricated and process-system applications. The selected grade must still meet the requirements of the service environment.
For procurement specifications that explicitly require grade 316L, refer to the SS 316L tube fittings for process tubing systems page. This dedicated page is the relevant destination when the required material is SS 316L rather than standard SS 316. Include the fitting configuration, tube dimensions, connection interface and material documentation requirements when requesting a quotation.
The applicable standard depends on the fitting type, connection design and intended service. Standards for stainless steel tubing should not automatically be applied to tube fittings because the products have different dimensional and performance requirements.
When a project requires compliance with a recognised product or performance standard, include the standard and any required edition in the purchase specification. The enquiry should also identify the material designation, dimensions, connection type, tolerances and inspection requirements.
For fittings supplied against drawings or part numbers, provide the drawing revision and any relevant dimensional schedule. This helps clarify the required configuration before a quotation is prepared.
Stainless steel tube fittings are used to connect compatible tubing to other tubing, instruments and equipment in systems such as:
The appropriate grade and fitting design depend on the actual operating conditions. Confirm pressure limits, temperature limits, media compatibility and connection requirements for the selected product.
Inspection and documentation requirements should be agreed before the order is placed. Depending on the product and purchase specification, the requested quality records may include:
Not every test applies to every fitting. The inspection plan should reflect the fitting design, applicable standard and project requirements. Confirm the available certificates and inspection scope for the specific order.
A complete enquiry helps reduce ambiguity when selecting and pricing tube fittings. Include the following details in your request:
| Enquiry Detail | What to Provide |
|---|---|
| Fitting Type | Union, elbow, tee, connector, adapter or other configuration |
| Material Grade | SS 304, SS 316, SS 316L or another specified grade |
| Tube Size | Outside diameter in inches or millimetres |
| Connection | Compression, threaded or another specified design |
| Thread Details | Standard, size and male/female configuration, where applicable |
| Operating Conditions | Required pressure, temperature and service medium |
| Quantity | Number of fittings for each size and configuration |
| Drawing or Part Number | Technical drawing, catalogue reference or approved part number |
| Inspection | Required tests and third-party inspection, if applicable |
| Documentation | Material certificates and project-specific records |
| Delivery | Destination and required delivery schedule |
If a drawing or approved part number is available, attach it to the enquiry. It can help establish the required configuration more accurately than a general description alone.
Ganpat Metal Pvt. Ltd. handles stainless steel product enquiries against defined technical and procurement specifications.
Product availability, manufacturing scope, applicable standards, inspection arrangements and delivery commitments should be confirmed for the specific requirement.
Ganpat Metal handles export enquiries for stainless steel products and industrial project requirements. SS tube fitting enquiries can be prepared for destinations including:
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For an export quotation, provide the fitting specification, material grade, dimensions, quantity, destination and required shipping or inspection documentation.
Send Ganpat Metal your SS tube fittings requirement with the fitting type, material grade, tube outside diameter, connection details, quantity and destination. Include the drawing or part number where available, along with any applicable standard, pressure rating and inspection requirements.
This information helps clarify the requested product and supports a quotation based on the actual connection and procurement specification.
