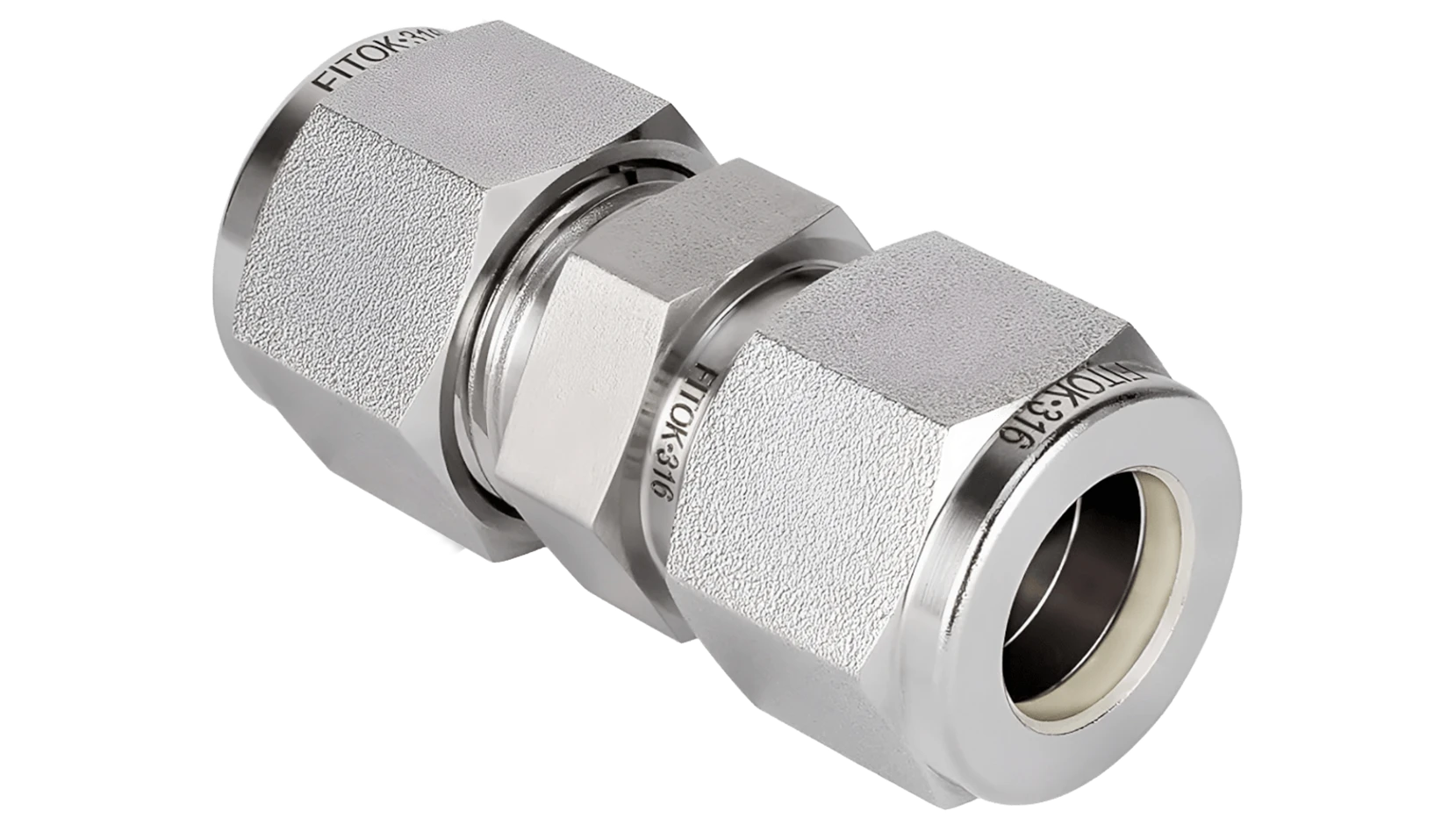

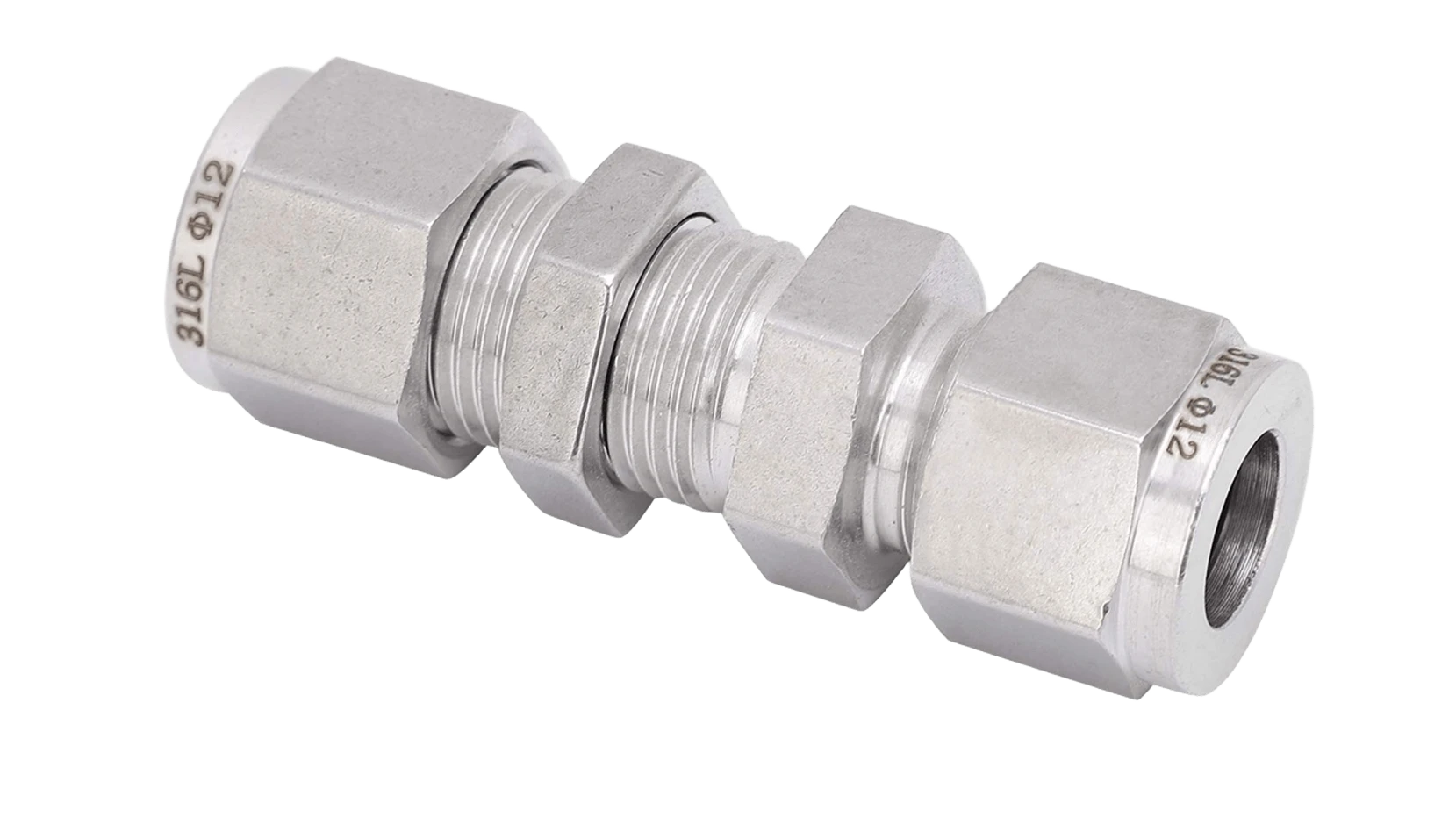

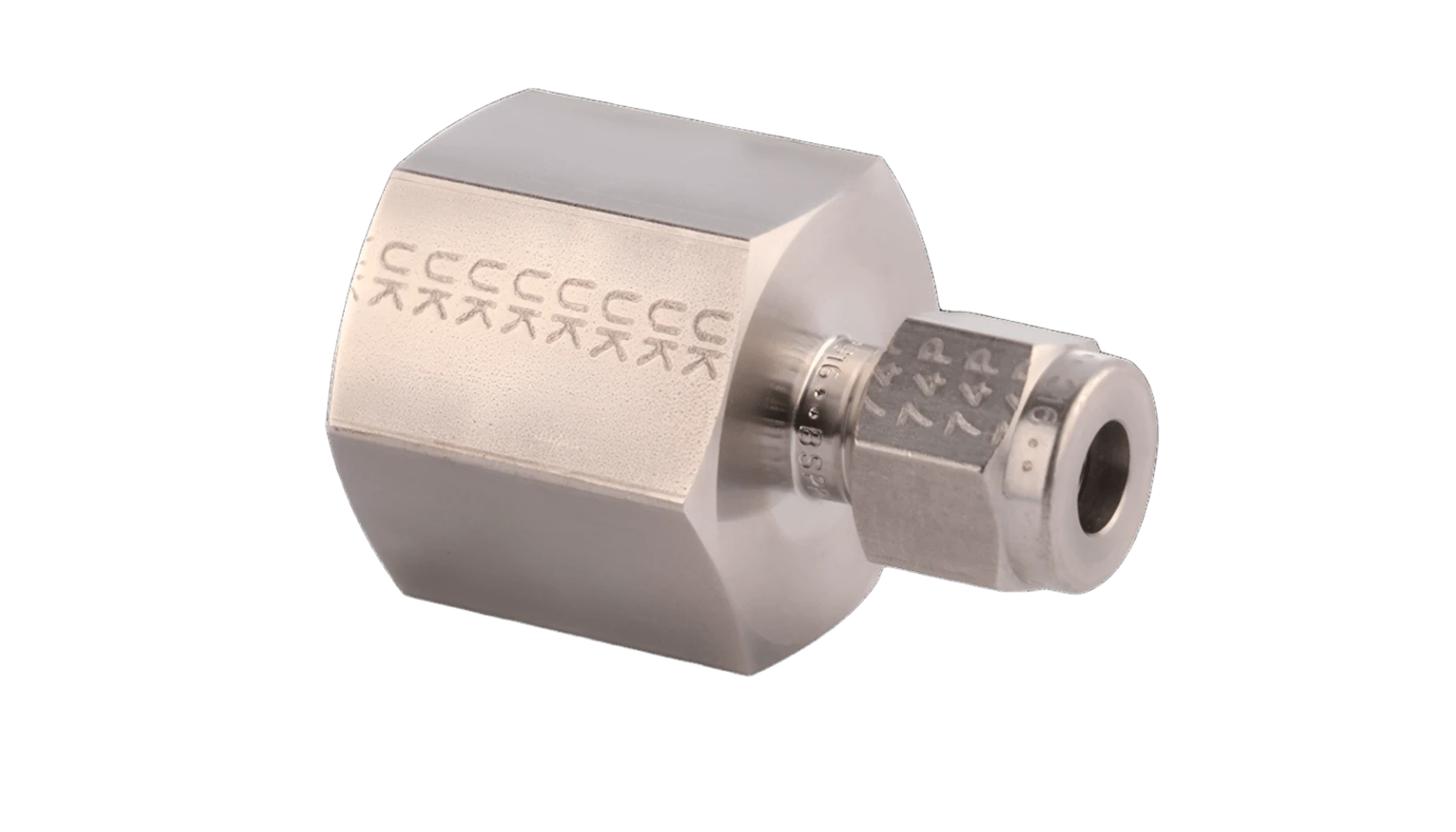

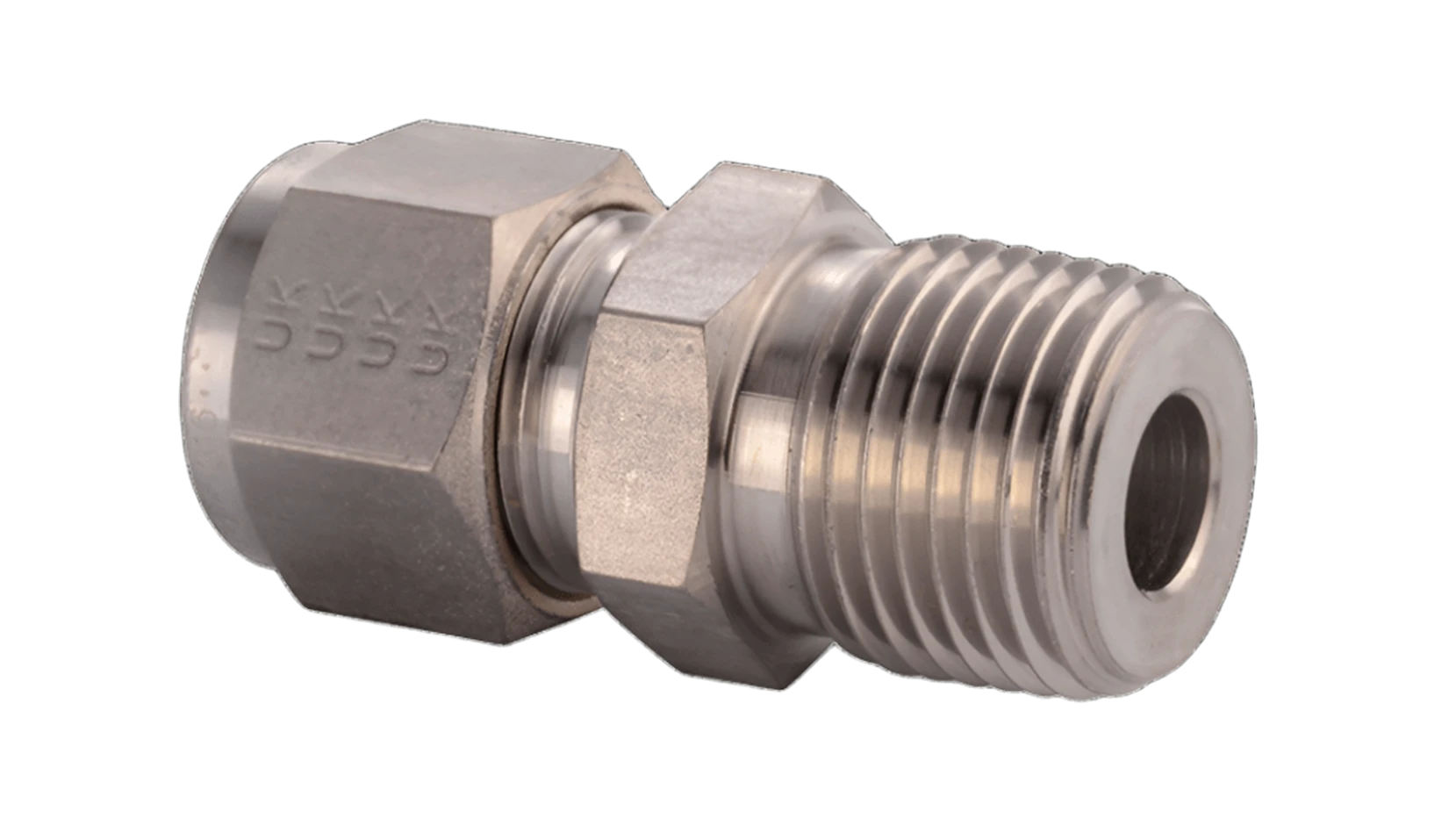

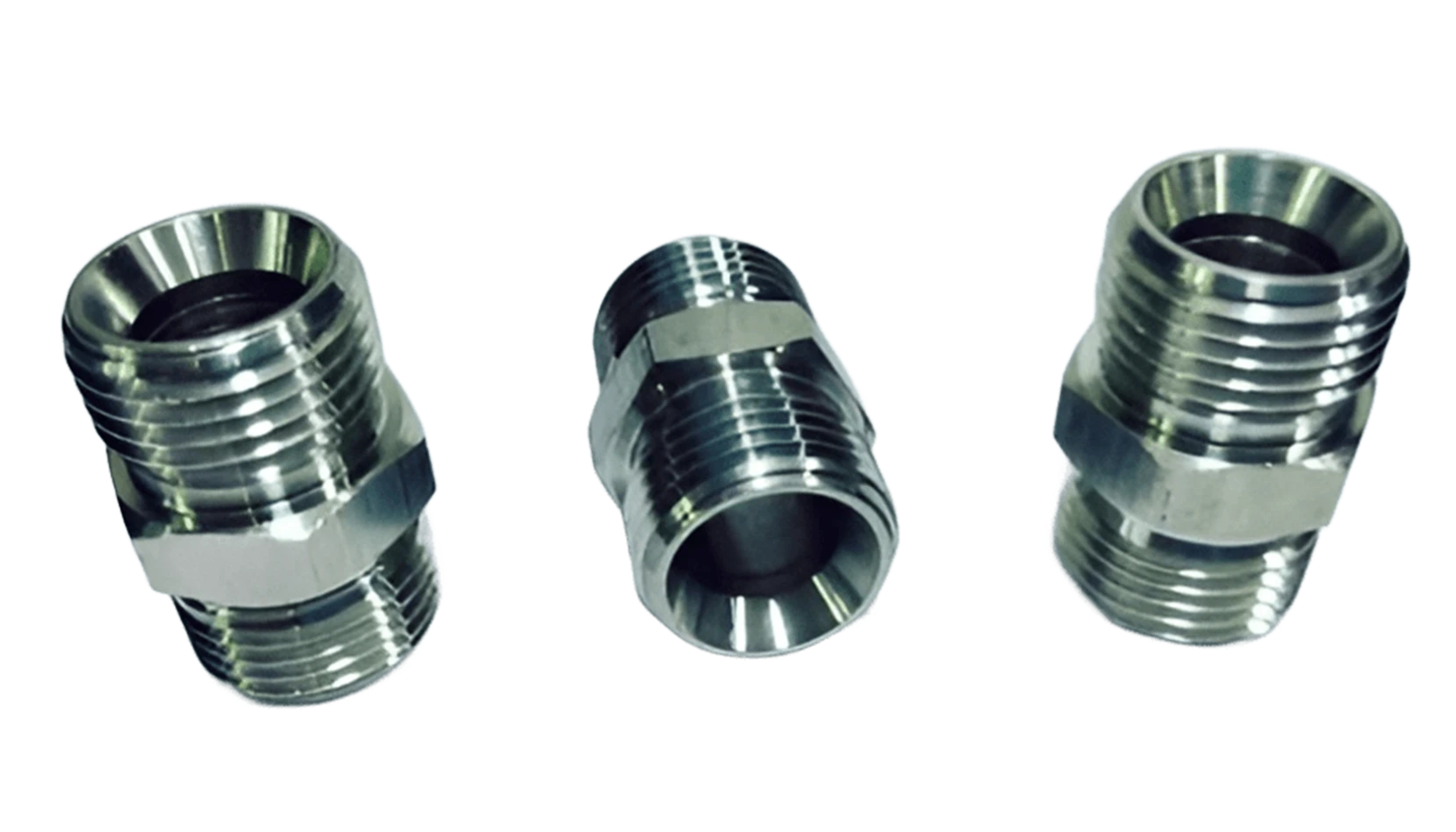

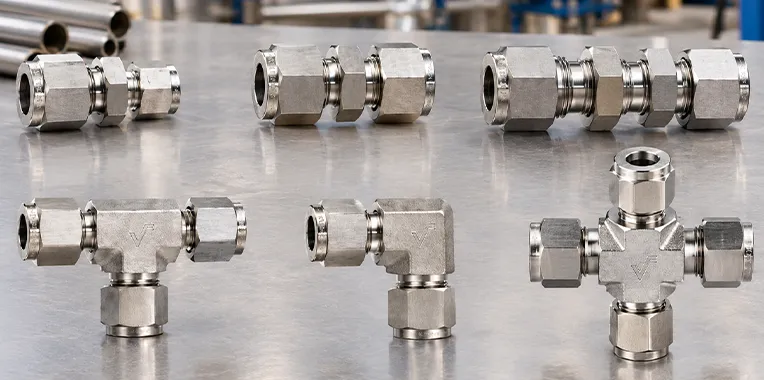

Ganpat Metal Pvt. Ltd. supplies SS 316L tube fittings for industrial instrumentation, process tubing and equipment connections. Available requirements include tube-to-union, tube-to-male and tube-to-female configurations, compression fittings, adapters and other specified connection types, subject to product availability.
SS 316L is a low-carbon austenitic stainless steel grade used in tubing systems where material compatibility and the specified carbon limit are important. Selecting the correct fitting involves matching the material grade, tube outside diameter, thread type, end connection and operating conditions.
SS 316L tube fittings connect tubing to instruments, valves, equipment and other sections of
a process system. Their configuration depends on the required connection, tubing dimensions
and installation design.
The low-carbon composition of SS 316L distinguishes it
from standard SS 316. This grade is commonly specified for fabricated equipment and tubing
systems where welding may be involved, although suitability depends on the application,
fabrication procedure and service conditions.
Ganpat Metal handles enquiries
against defined material specifications, drawings, part numbers and purchase schedules to
help identify the required fitting configuration.
Final dimensions, thread types, pressure ratings, available configurations and documentation must be confirmed for the specific fitting and purchase order.
| Specification | Details |
|---|---|
| Product | SS 316L Stainless Steel Tube Fittings |
| Material Grade | SS 316L |
| UNS | S31603 |
| Werkstoff No. | 1.4404 / 1.4435, subject to the specified grade |
| Material Standards | ASTM A182, ASTM A276, ASTM A479 and corresponding ASME specifications, where applicable to the product form |
| Reference Size Range | 1/16" to 2" and 2 mm to 50 mm, subject to availability |

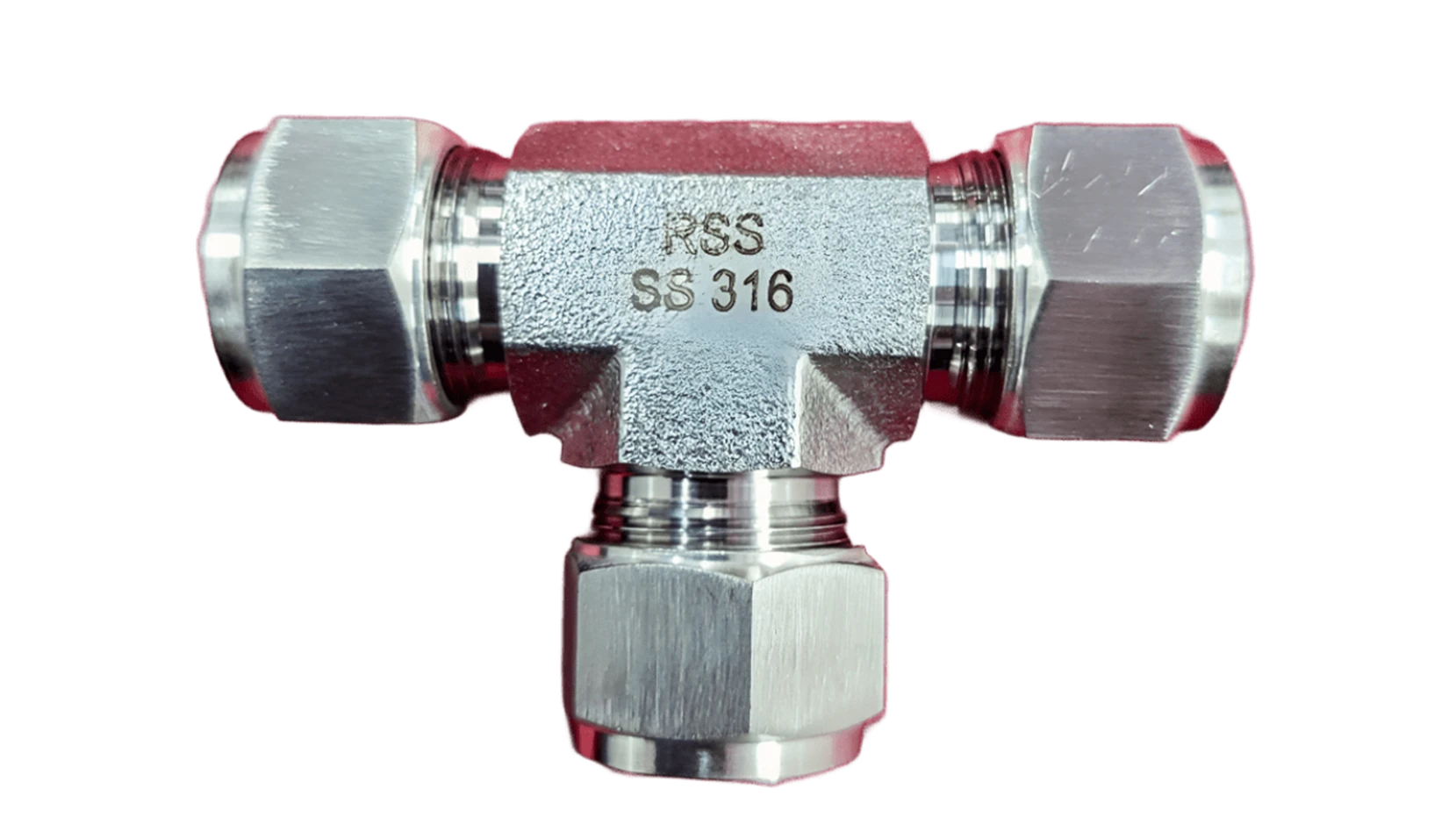

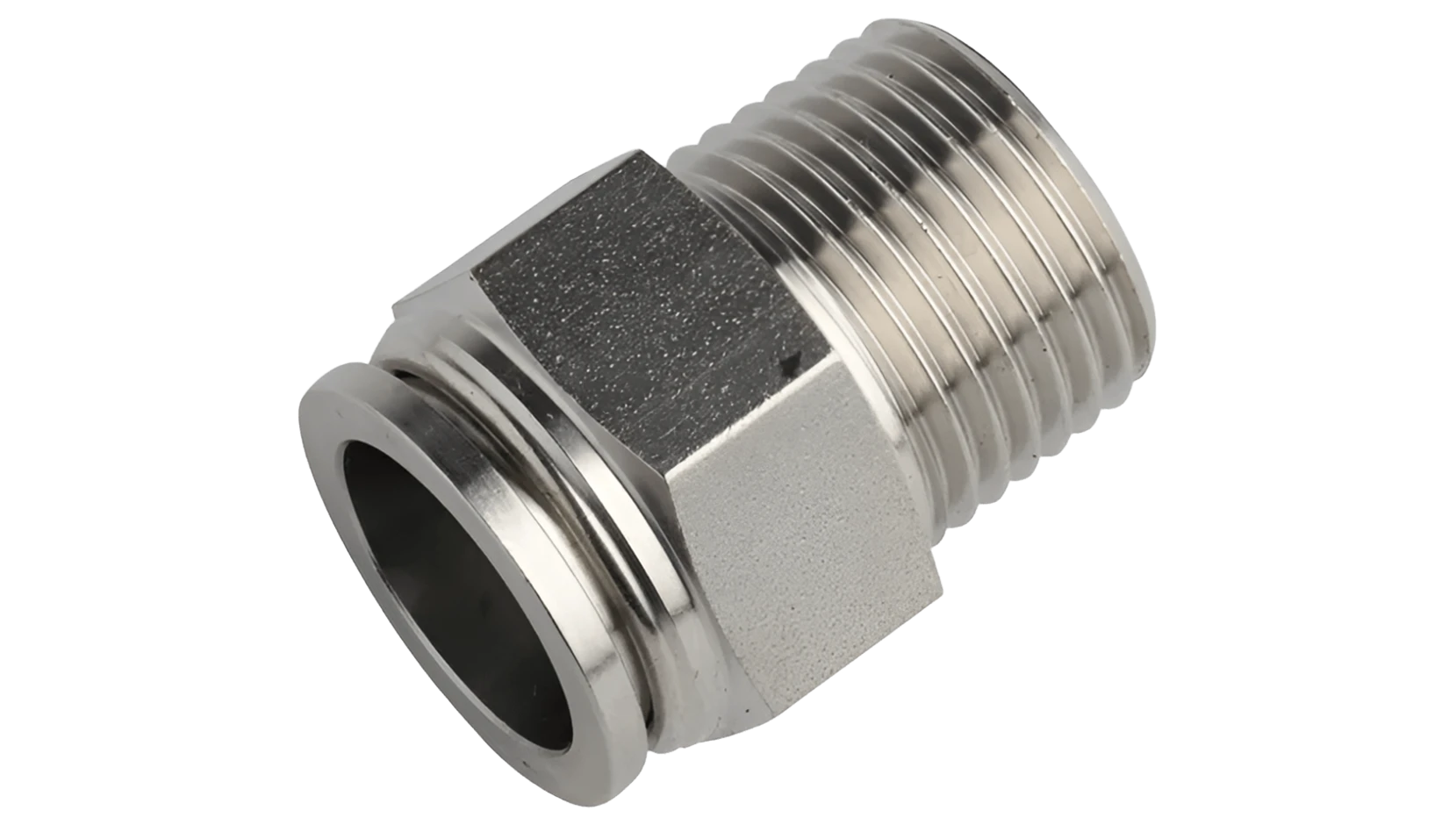

| Fitting Types | Tube-to-union, tube-to-male, tube-to-female, instrument pipe fittings and accessories |
| Thread Options | NPT, ISO/BSP parallel, ISO/BSP tapered and SAE, where specified |
| Thread Standards | ASME B1.20.1, ISO 228, ISO 7, BS EN 10226-1 and ASME B1.1, as applicable |
| End Connections | Threaded connections, weld ends, port connectors, tube adapters and other specified interfaces |
| Working Pressure | Confirm for the exact fitting, tubing dimensions and connection configuration |
| Working Temperature | Confirm against the fitting and tubing manufacturer's limits and process conditions |
| Inspection | As specified in the purchase order |
| Documentation | Material and inspection records, where agreed |
SS 316L is identified by UNS S31603. The following designations are associated with SS 316L or related composition variants; the exact equivalence must be confirmed against the applicable standard.
| Standard | Designation |
|---|---|
| UNS | S31603 |
| Werkstoff No. | 1.4404 / 1.4435 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| AFNOR | Z3CND17-11-02 / Z3CND18-14-03 |
| EN | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Element | SS 316 | SS 316L |
|---|---|---|
| Carbon (C) | 0.08% max. | 0.035% max. |
| Manganese (Mn) | 2.00% max. | 2.00% max. |
| Silicon (Si) | 1.00% max. | 1.00% max. |
| Phosphorus (P) | 0.045% max. | 0.045% max. |
| Sulphur (S) | 0.030% max. | 0.030% max. |
| Chromium (Cr) | 16.00–18.00% | 16.00–18.00% |
| Molybdenum (Mo) | 2.00–3.00% | 2.00–3.00% |
| Nickel (Ni) | 11.00–14.00% | 10.00–14.00% |
| Iron (Fe) | Balance | Balance |
| Property | SS 316L Reference Value |
|---|---|
| Density | Approximately 8.0 g/cm³ |
| Melting Point | Approximately 1399°C |
| Tensile Strength | 515 MPa / 75,000 psi |
| Yield Strength, 0.2% Offset | 205 MPa / 30,000 psi |
| Elongation | 35% |
SS 316L tube fittings are selected according to the tubing arrangement and the interface required by the connected component.
The fitting design, connection mechanism and dimensions should be confirmed before ordering, particularly when replacing an existing component or matching a particular instrument connection.
The reference size range for SS 316L tube fittings is 1/16 inch to 2 inches in imperial dimensions and 2 mm to 50 mm in metric dimensions. Actual availability depends on the fitting type and product range.
Thread and end-connection compatibility is essential when specifying a fitting. Common options include:
NPT, BSPT and BSPP threads have different thread forms or sealing arrangements. They should not be assumed to be directly interchangeable. SAE, MS and AN connections also require confirmation of the applicable interface and dimensions.
For a quotation, specify the tube outside diameter, thread type, nominal thread size, fitting configuration and connection details. Drawings or existing part numbers can help identify the intended connection.
The supplied reference includes working-pressure values of up to 2,000–6,000 psi, as well as a separate reference of 1,200 psi or 8 MPa. These figures describe conflicting or potentially different rating conditions and should not be combined into one universal pressure rating for SS 316L tube fittings.
The permitted working pressure depends on factors such as:
The reference temperature range is -40°C to 250°C (-40°F to 482°F), but it should be published as a product-specific rating only after confirmation from the relevant manufacturer documentation. Pressure and temperature limits must be evaluated together for the intended application.
For an accurate quotation, provide the operating pressure, temperature, tubing specification, fitting size, connection type and process medium.
SS 316L tube fittings may be specified for industrial tubing assemblies where the grade and fitting configuration are suitable for the service conditions.
Final suitability depends on the process medium, concentration, temperature, pressure and connection design. Material selection should follow the applicable engineering specification.
Inspection and documentation requirements should be agreed at the enquiry stage and matched to the product standard and purchase order. Depending on the order, the documentation package may include:
Not every inspection or test applies to every fitting design. Confirm the applicable tests, certificate availability and inspection level before placing the order.
Ganpat Metal Pvt. Ltd. handles stainless steel product enquiries against defined material, dimensional and procurement specifications.
Availability, applicable standards, inspection scope and delivery schedules should be confirmed for each order.
Ganpat Metal Pvt. Ltd. handles export enquiries for stainless steel products and industrial project requirements. SS 316L tube fitting enquiries can be prepared for the following destinations, subject to order specifications and delivery arrangements:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Export enquiries should include the required material grade, fitting type, dimensions, thread specification, quantity, destination and documentation requirements. Packing, shipping and delivery arrangements should be confirmed during quotation.
Ganpat Metal handles SS 316L tube fitting enquiries for industrial buyers and project procurement teams requiring defined material grades, dimensions and connection configurations.
To help establish the correct product, provide the tube outside diameter, fitting type, thread standard, end connection, operating conditions and required quantity. Where the fitting must match an existing installation, include the manufacturer's part number or a dimensioned drawing.
The governing material standard, inspection level, certificate requirements and delivery destination should also be stated in the purchase enquiry.
Send Ganpat Metal the following information to request pricing for SS 316L tube fittings:
Ganpat Metal Pvt. Ltd. handles stainless steel tube fitting enquiries across different grades and connection configurations for industrial instrumentation and process tubing systems. For other grades, sizes and fitting types, visit our stainless-steel-tube-fittings.category page to review the broader product range.
