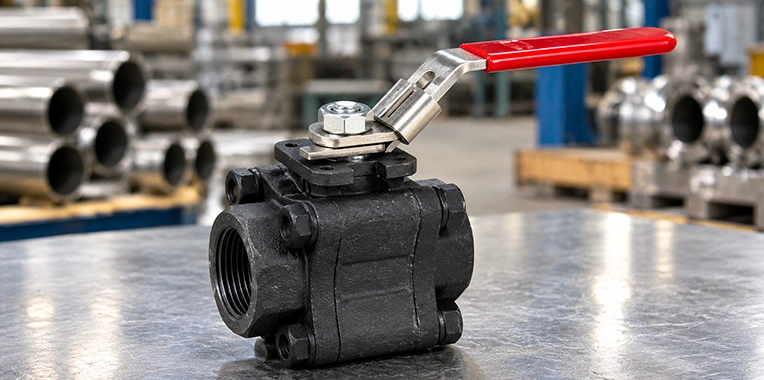

Ganpat Metal Pvt. Ltd. handles enquiries for A105 Instrumentation Valves Manufacturer in India requirements, including carbon steel instrumentation ball valves specified for industrial piping, instrument panels and process systems. Available configurations should be confirmed against the required design, material specification and operating conditions.
Buyers can enquire about mini ball valves, round-body ball valves, square-body ball valves, panel-mount ball valves, high-pressure designs and multiport configurations. Each enquiry can be defined by valve size, pressure rating, port arrangement, end connection, seat material and actuation requirements. Share your valve datasheet, existing model number or dimensional drawing with Ganpat Metal to help identify the required configuration and obtain a project-specific quotation.
A105 instrumentation ball valves are selected according to the required valve design, body configuration, port arrangement, pressure class, end connection and applicable standard for the project. The ASTM A105/A105M material specification covers forged carbon steel components and must be verified against the product form and purchase order.
Fire-safe, high-temperature and other specialised features must be supported by the relevant model's design and test documentation. They should not be inferred from the A105 material designation alone.
A105 instrumentation valves are selected according to the required valve design, nominal size, pressure class, end connection and applicable standard for the project.
| Parameter | Specification |
|---|---|
| Material Specification | ASTM A105/A105M, subject to component and product-design applicability |
| Material Type | Forged carbon steel |
| Valve Category | Instrumentation ball valves, subject to confirmed product availability |
| Reference Pressure Classes | 150, 300, 600, 800, 900, 1500 and 2500 |
| Reference Size Range | 6 mm to 750 mm, requiring confirmation against the selected valve series |
| Thread Options | NPT, BSP, BSPT and UNEF, where offered for the selected model |
| End Connections | Threaded, flanged, socket weld and butt weld, subject to design |
| Body Configurations | Mini, round body, square body, panel mount and split body |
| Port Arrangements | Two-way, three-way, four-way and five-way, subject to availability |
| Bore Options | Full bore or reduced bore, where specified |
| Seat Options | Metal seated or other model-specific seat materials |
| Actuation | Manual or pneumatic, where available |
| Valve Design Standard | ASME B16.34, where applicable |
| Flange Standard | ASME B16.5, where applicable |
| Face-to-Face Standard | ASME B16.10, where applicable |
| Inspection | As specified in the purchase order and applicable product standard |
Material verification must be performed against the applicable ASTM A105/A105M edition and the material certificate supplied with the component.
| Material Verification | Requirement |
|---|---|
| Chemical Composition | Verify against the applicable ASTM A105/A105M edition and material certificate |
| Tensile Strength | Verify the specified requirement and reported test result |
| Yield Strength | Verify the specified requirement and reported test result |
| Elongation | Check against the applicable test and acceptance requirements |
| Hardness | Confirm the applicable limit and test result |
| Heat Treatment | Verify the required condition and associated records, where applicable |
| Material Traceability | Match the material identification and certificate to the supplied component |
| Requirement | Standard or Verification |
|---|---|
| Forged Carbon Steel Material | ASTM A105/A105M, where applicable |
| Valve Pressure-Temperature Rating | Applicable valve design standard and manufacturer rating data |
| Valve Design | ASME B16.34, where applicable |
| Flanged Connections | ASME B16.5, where applicable |
| Face-to-Face Dimensions | ASME B16.10, where applicable |
| Pressure Class | Specify the required class and confirm the rating for the selected model |
| Operating Conditions | State maximum and normal pressure and temperature |
| Special Service | Specify any applicable fire-safe, high-temperature or other qualification requirement |
| Valve Requirement | Details to Include |
|---|---|
| Mini Ball Valve | Overall length, port size, connection gender and thread standard |
| High-Pressure Ball Valve | Maximum operating pressure, operating temperature, seat material and rated connection |
| Panel-Mount Ball Valve | Panel thickness, mounting-hole diameter, body dimensions and handle clearance |
| Round-Body or Square-Body Valve | Body profile, installation envelope and end-to-end dimensions |
| Pneumatic Valve | Actuator type, air supply, control signal and fail position if required |
| Extended-Nipple Valve | Nipple length, pipe dimensions, end preparation and connection standard |
If the enquiry is for a replacement valve, send the existing model number or drawing along with photographs and measured dimensions. Do not rely on photographs alone to establish pressure rating, thread compatibility or material grade.
Ganpat Metal can assess enquiries for the following configurations, subject to confirmation of the required product and supply capability.
| Valve Type | Description |
|---|---|
| A105 Mini Ball Valve | Compact valve configuration for installations where limited space and small connection sizes are key constraints. |
| A105 Round Body Ball Valve | Round-body construction for installations designed around that body profile. |
| A105 Square Body Ball Valve | Square-body configuration for applications where the mounting envelope and body geometry must match an existing assembly. |
| A105 High-Pressure Ball Valve | Selected against the maximum operating pressure, operating temperature, seat design and end connection. |
| A105 Panel-Mount Ball Valve | Intended for suitable panel-mounted installations. Include panel thickness, mounting-hole dimensions and valve orientation. |
| A105 Two-Way Ball Valve | Provides a straight-through flow path for on-off isolation. |
| A105 Three-Way Ball Valve | Provides a multiport arrangement for switching or diverting flow. |
| A105 Four-Way / Five-Way Ball Valve | Specialised multiport configurations requiring confirmation of port layout and operating positions. |
| A105 Split-Body / Trunnion / Metal-Seated / Pneumatic | Specialised body, seating or actuation configurations subject to model availability and design confirmation. |
For quotation accuracy, provide the valve type, size, pressure class, end connection, quantity and any inspection requirements. These details determine the applicable manufacturing and documentation requirements.
Select A105 Instrumentation Valve parameters and click the "Generate Enquiry Summary" button to prepare your specification for quotation.
Different port arrangements serve different process functions. Confirm the internal porting and operating positions against the system schematic.
| Configuration | What to Specify |
|---|---|
| Two-Way Ball Valve | Straight-through or shut-off arrangement, port size and connection type |
| Three-Way Ball Valve | L-port or T-port arrangement, where applicable, and required flow path |
| Four-Way Ball Valve | Port layout, switching positions and piping schematic |
| Five-Way Ball Valve | Manufacturer's port diagram, connection sizes and operating positions |
End connection details must be specified clearly so that the supplied valve matches the piping or instrument interface.
| Connection Type | Purchase Specification Details |
|---|---|
| NPT Thread | Nominal size, male or female connection and applicable thread designation |
| BSP / BSPT Thread | Confirm the exact thread form and mating connection |
| UNEF Thread | Full thread designation, pitch and mating-component details |
| Flanged End | Nominal size, flange standard, pressure class and facing |
| Socket-Weld End | Connection size and applicable piping specification |
| Butt-Weld End | Pipe outside diameter, wall thickness and end preparation |
| Butt-Weld with Extended Nipple | Nipple length, dimensions and end preparation |
Inspection requirements should be defined before quotation where a project requires specific tests, traceability or third-party verification. The required documents depend on the valve construction, material specification, purchase order and applicable standard.
For fire-safe, high-temperature or actuated valves, identify the exact qualification or test standard required by the project. A general pressure-test report does not, by itself, establish fire-safe qualification or suitability for every operating condition.
A105 instrumentation ball valves may be considered for suitable industrial systems when the valve material, sealing arrangement and pressure-temperature rating meet the service specification.
Carbon steel suitability must be evaluated against the actual process medium, temperature and corrosion conditions. The A105 designation alone does not establish compatibility with every fluid or environment.
Ganpat Metal Pvt. Ltd. handles industrial metal enquiries using the technical information supplied by the buyer to define the required material, dimensions and product configuration.
Specific valve configurations, pressure classes, sizes, special features and documentation must be confirmed before they are included in a quotation.
Ganpat Metal Pvt. Ltd. handles industrial metal product enquiries for domestic and export markets, including:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For export enquiries, provide the destination, quantity, delivery schedule, packaging instructions and any project-specific inspection or shipping documentation.
To obtain a useful quotation, send the following details:
| Requirement | Details to Provide |
|---|---|
| Material Grade | ASTM A105 / A105M |
| Valve Type and Body Configuration | Mini / Round / Square / Panel / High-Pressure / Split / Trunnion / etc. |
| Port Arrangement and Flow Diagram | Two-way / Three-way / Four-way / Five-way (include port diagram if available) |
| Nominal Port Size and Connection Gender | Required size and male/female details |
| Thread Designation or Welding-End Details | NPT / BSP / BSPT / UNEF / Flanged / SW / BW |
| Pressure Class and Operating Pressure | 150 / 300 / 600 / 800 / 900 / 1500 / 2500 |
| Normal and Maximum Operating Temperature | Intended process conditions |
| Seat and Sealing-Material Requirements | As specified |
| Manual or Pneumatic Actuation Details | Actuator type, air supply, control signal if applicable |
| Mounting Dimensions | Where applicable (panel thickness, hole pattern, etc.) |
| Design, Inspection and Testing Standards | As required by the project |
| Material Certificates and Inspection Reports | As agreed |
| Quantity and Delivery Destination | Required quantity and schedule |
Ganpat Metal Pvt. Ltd. handles enquiries for industrial valve requirements involving different material grades, valve functions and connection arrangements. For related material grades and valve configurations, visit the SS Instrumentation Valves Manufacturer and Supplier in India category page.
