Ganpat Metal Pvt. Ltd. supplies Hastelloy instrumentation valve requirements for industrial process control, pressure measurement and fluid handling systems. Hastelloy alloys are nickel-based materials selected for applications that require resistance to specific aggressive process media. The correct alloy and valve configuration depend on the fluid composition, operating temperature, pressure and connection design.
For grade-specific procurement, Ganpat Metal handles enquiries for Hastelloy B2, Hastelloy C22 and Hastelloy C276 instrumentation valves. Buyers can specify the required valve type, alloy designation, port size, end connection, pressure rating and inspection documentation when requesting a quotation.
| Specification | Technical Details |
|---|---|
| Product | Hastelloy Instrumentation Valves |
| Material Family | Nickel-based corrosion-resistant alloys |
| Hastelloy B2 | UNS N10665 |
| Hastelloy C22 | UNS N06022 |
| Hastelloy C276 | UNS N10276 |
| B2 Werkstoff Number | 2.4617 |
| C22 Werkstoff Number | 2.4602 |
| C276 Werkstoff Number | 2.4819 |

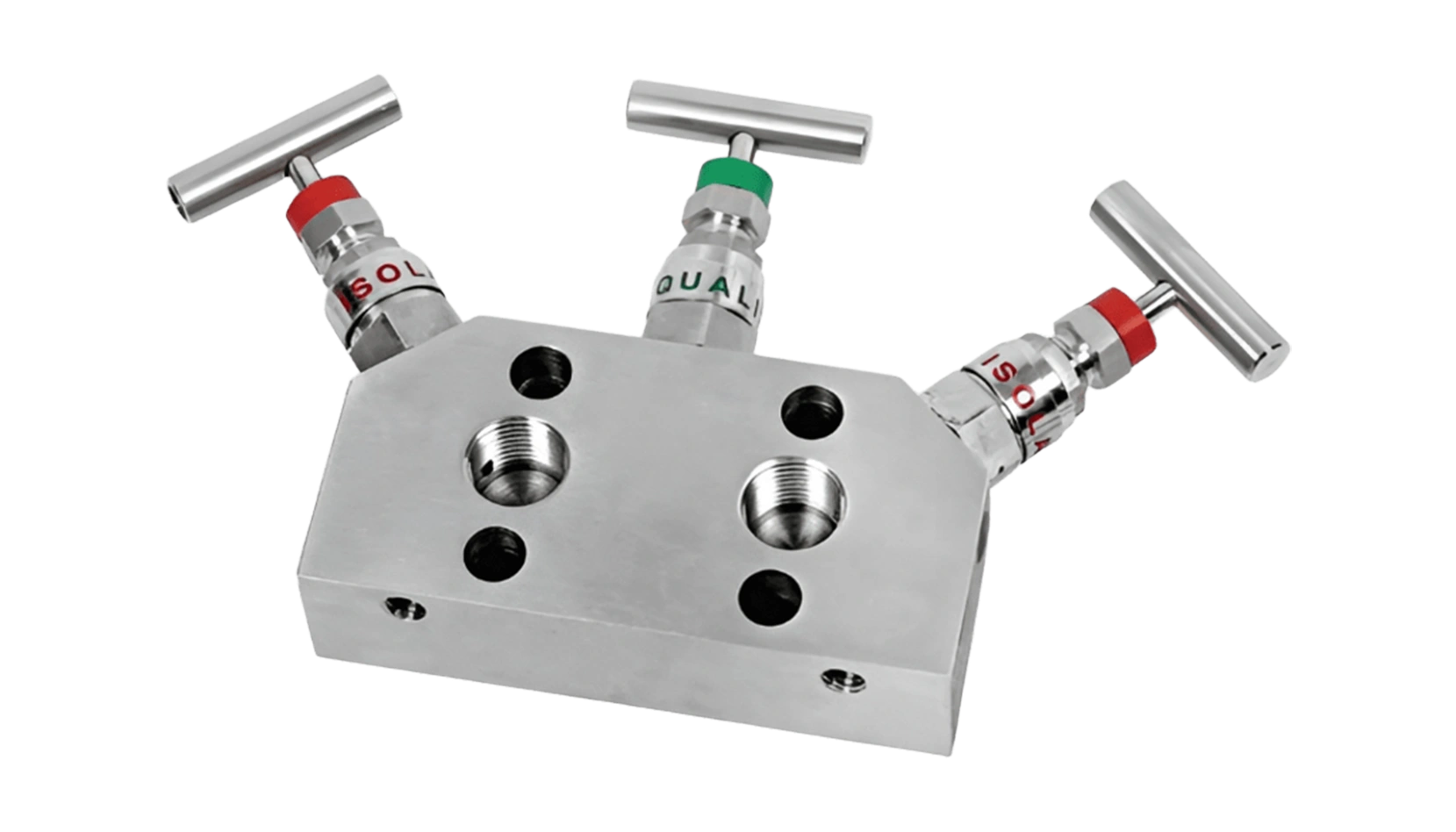

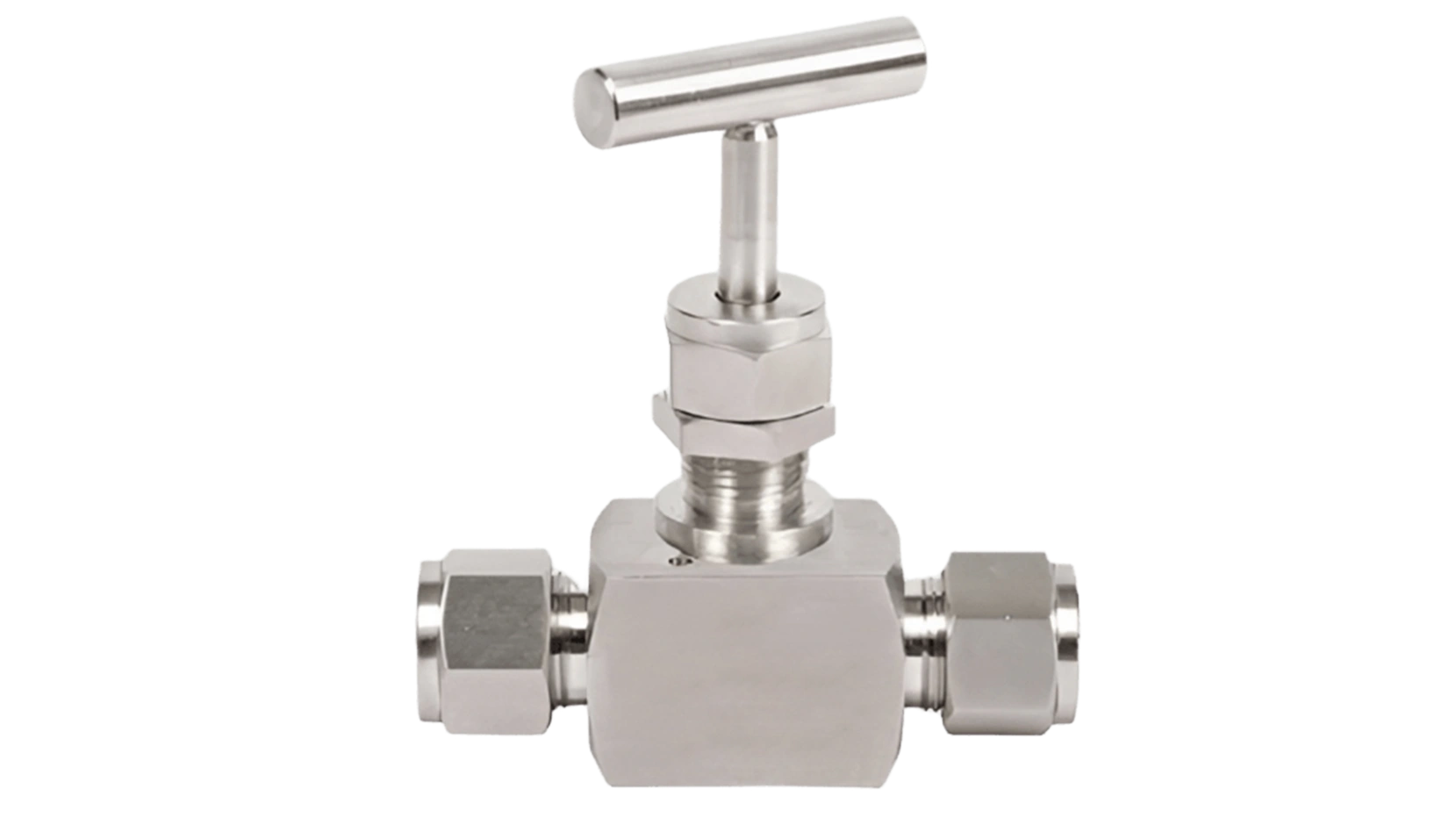

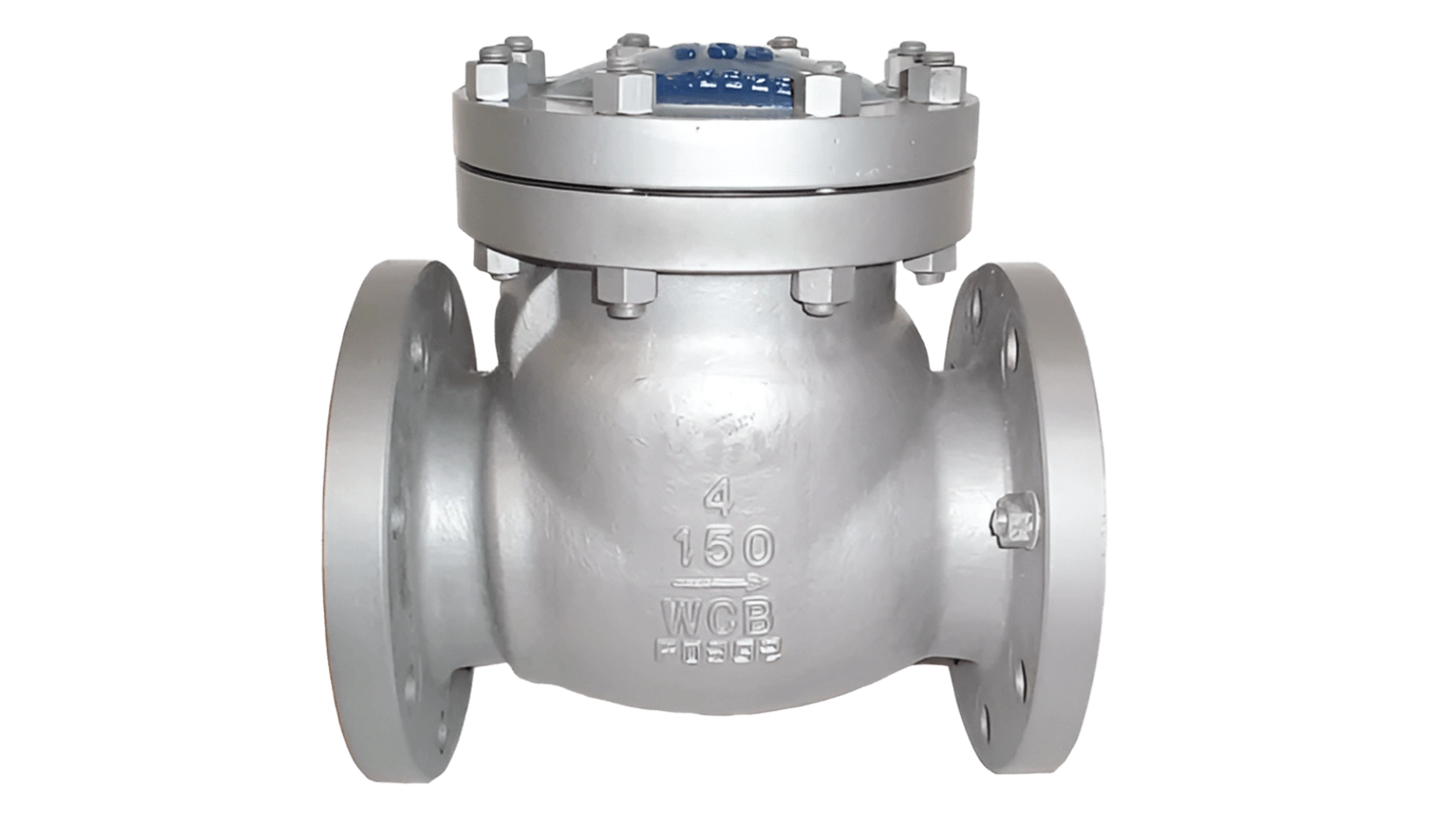

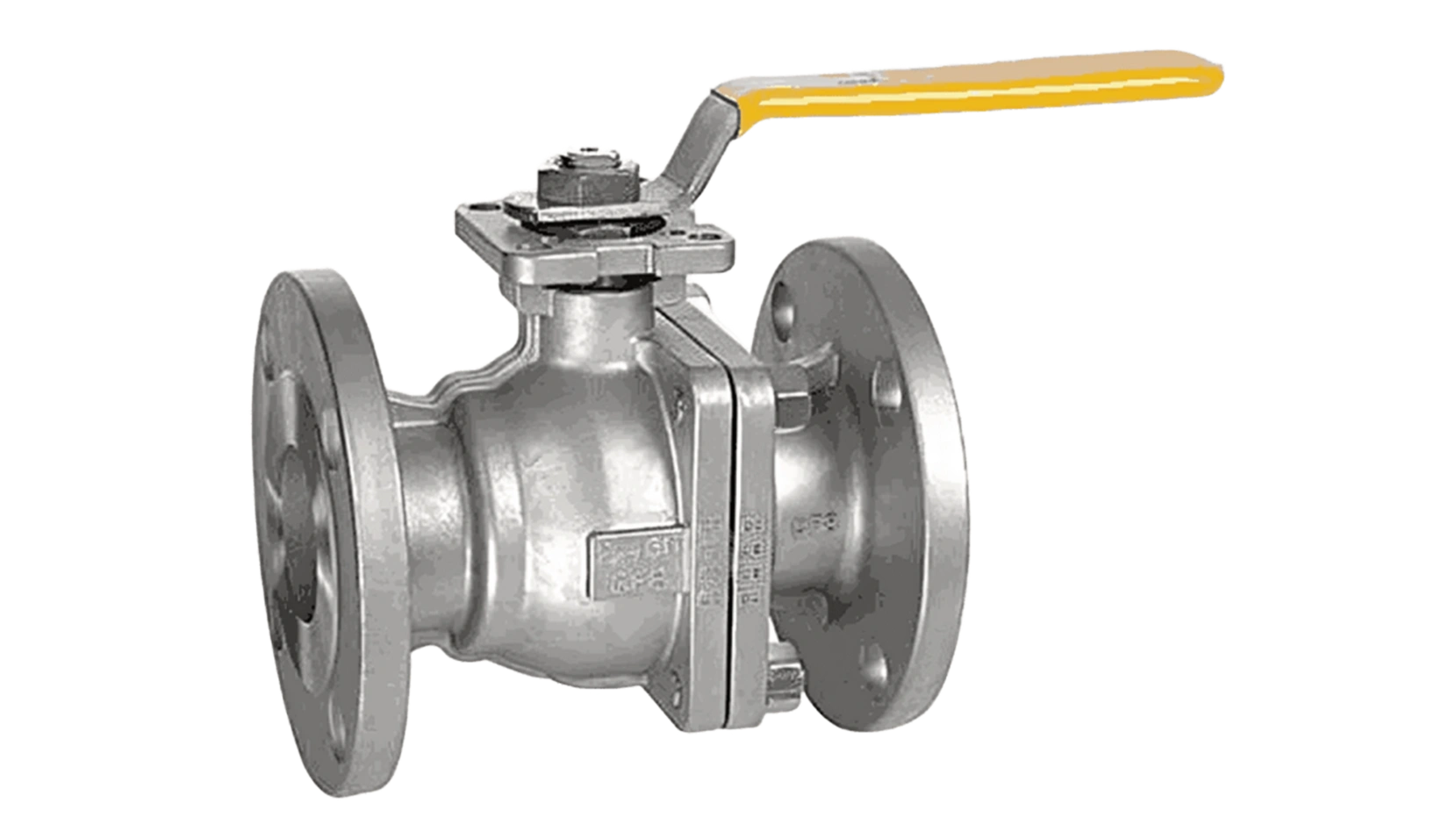

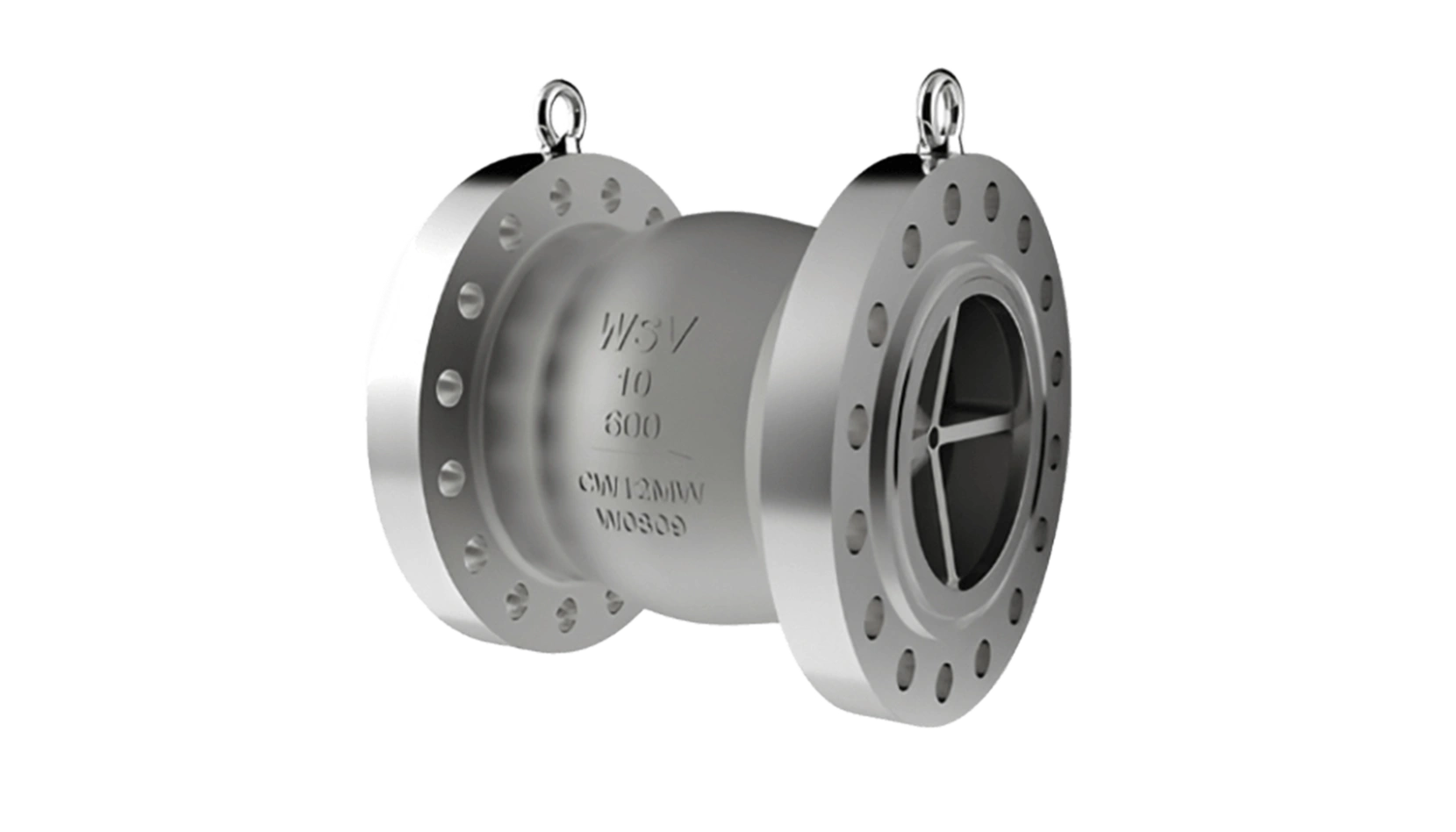

| Valve Types | Ball, needle, check and manifold valves |
| Connection Options | Threaded, tube-end, socket-weld and other specified connections |
| Thread Designations | NPT, BSPP, BSPT or metric, according to the selected connection |
| Pressure Rating | Specify the rated working pressure or applicable pressure class |
| Temperature Limit | Specify the design temperature and confirm the rating for the selected valve and seal |
| Material Verification | Alloy identification against the purchase specification and material documentation |
| Inspection | Required pressure, leakage, dimensional and material checks |
| Documentation | Material test certificate and inspection records as stated in the purchase order |
| Element | Hastelloy B2, UNS N10665 | Hastelloy C22, UNS N06022 | Hastelloy C276, UNS N10276 |
|---|---|---|---|
| Nickel (Ni) | Balance | Balance | Balance |
| Chromium (Cr) | 1.0% max. | 20.0–22.5% | 14.5–16.5% |
| Molybdenum (Mo) | 26.0–30.0% | 12.5–14.5% | 15.0–17.0% |
| Iron (Fe) | 2.0% max. | 2.0–6.0% | 4.0–7.0% |
| Tungsten (W) | 0.6% max. | 2.5–3.5% | 3.0–4.5% |
| Cobalt (Co) | 1.0% max. | 2.5% max. | 2.5% max. |
| Manganese (Mn) | 1.0% max. | 0.50% max. | 1.0% max. |
| Silicon (Si) | 0.10% max. | 0.08% max. | 0.08% max. |
| Carbon (C) | 0.02% max. | 0.015% max. | 0.010% max. |
| Phosphorus (P) | 0.040% max. | 0.020% max. | 0.040% max. |
| Sulfur (S) | 0.030% max. | 0.020% max. | 0.030% max. |
| Vanadium (V) | Not specified in this summary | 0.35% max. | 0.35% max. |
| Property | Hastelloy C22 Sheet | Hastelloy C276 Sheet |
|---|---|---|
| Density | 8.69 g/cm³ | 8.89 g/cm³ |
| Ultimate Tensile Strength | 800 MPa | 792 MPa |
| 0.2% Offset Yield Strength | 407 MPa | 356 MPa |
| Elongation | 57% | 61% |
| Melting Range | Confirm against the applicable alloy datasheet | 1323–1371°C |
Instrumentation valves must match the tubing or piping connection, installation layout and design pressure of the system. Connection dimensions and pressure limits depend on the selected valve model.
| Connection | Description |
|---|---|
| NPT | National Pipe Taper thread. |
| BSPT | British Standard Pipe Taper thread. |
| BSPP | British Standard Pipe Parallel thread. |
| Metric Threads | Metric connection dimensions specified by the equipment or project. |
| Tube-End Connections | Connections designed for the specified instrumentation tubing and fitting system. |
| Socket-Weld Connections | Welded connections for compatible pipe and valve designs. |
| Flanged Connections | Flanged arrangements dimensioned to the specified flange standard. |
For procurement, specify the required working pressure in psi, bar or MPa, design and operating temperatures, valve port size and flow arrangement, body and wetted-component alloy, seat, seal and packing materials, and the required connection standard and end configuration.
The valve function determines how fluid is isolated, directed, regulated or prevented from flowing backward through an instrumentation line.
The required function should be stated in the enquiry. A ball valve, needle valve, check valve and pressure-instrument manifold do not share the same internal design or pressure limitations.
The governing standards depend on valve construction, pressure boundary design, end connection and the inspection scope stated in the purchase order. A standard applicable to one valve type should not automatically be applied to every instrumentation valve.
Relevant standards may include:
The purchase order should identify the applicable design standard, material specification and testing standard rather than listing standards without linking them to the actual valve design.
The inspection package should be agreed before order confirmation. Depending on the valve design and purchase specification, it may include:
Testing must follow the applicable valve specification and agreed acceptance criteria. A material certificate alone does not demonstrate that a completed valve has passed its required pressure or leakage tests.
For the B2 material option, refer to the Hastelloy B2 Instrumentation Valves Manufacturer in India page for grade identification and the relevant material specification. For alloy-specific selection, refer to the Hastelloy C22 Instrumentation Valves Manufacturer in India page for the C22 material option and its relevant application requirements.
Hastelloy instrumentation valves are selected for process systems in which the specified nickel-based alloy is compatible with the operating medium and service conditions.
Common application areas include:
Ganpat Metal Pvt. Ltd. handles industrial metal and valve-related enquiries based on the specification supplied by the buyer. For a Hastelloy instrumentation valve enquiry, provide the alloy designation and the complete connection and operating details to establish the required product configuration.
Ganpat Metal accepts domestic and export enquiries for industrial material requirements. To assess a Hastelloy instrumentation valve enquiry, provide the destination, quantity, technical datasheet and required delivery documentation.
The enquiry should identify the exact alloy, valve function, port size, end connection, working pressure, temperature and testing requirements. These details allow the requested configuration to be evaluated against the relevant product specification.
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Send the following details to prepare a technically complete enquiry:
| Enquiry Detail | Information Required |
|---|---|
| Alloy Grade | B2 / C22 / C276 |
| Valve Type | Ball / Needle / Check / Manifold |
| Port Size | Required nominal size or tubing size |
| Connection | NPT / BSPP / BSPT / Metric / Tube End / Socket Weld / Flanged |
| Thread Configuration | Male / Female / Other specified arrangement |
| Working Pressure | Required pressure in psi, bar or MPa |
| Operating Temperature | Minimum, normal and maximum design temperature |
| Wetted Components | Required body, trim and other wetted-material specifications |
| Seat and Packing | Required material and service compatibility |
| Quantity | Required quantity |
| Testing | Pressure test, leakage test, PMI or other specified inspection |
| Documentation | MTC, test reports and third-party inspection, if required |
| Destination | Delivery city and country |
