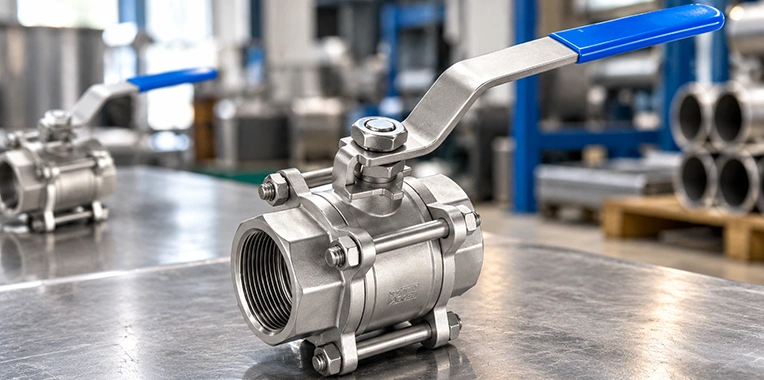

Ganpat Metal Pvt. Ltd. handles enquiries for SS 316 instrument valves as a manufacturer and supplier in India, supporting industrial procurement for instrumentation lines, process equipment and fluid control systems. Buyers can specify the valve type, material grade, size, pressure rating, end connection and inspection requirements according to their project specifications.
Stainless Steel 316, identified by UNS S31600 and Werkstoff No. 1.4401, is an austenitic stainless steel containing molybdenum. It is used in industrial applications where the material's corrosion resistance is suitable for the operating conditions. Ganpat Metal handles specification-based enquiries for instrumentation valve requirements. Share your valve schedule, technical datasheet or engineering drawing to identify the required configuration and request a quotation.
Instrumentation valves control, isolate or direct fluid flow in measurement and process systems. The correct configuration depends on the instrument connection, required flow function, operating pressure, temperature and process medium.
SS 316 may be considered for oil and gas instrumentation, chemical processing, utility systems and other industrial applications when its material properties are suitable for the service. Material selection should account for fluid composition, concentration, chloride exposure and temperature rather than relying on the grade designation alone.
When specifying SS 316 instrument valves, identify the required valve function (isolation, flow adjustment or reverse-flow prevention), valve type and port arrangement, nominal valve size or tube outside diameter, operating pressure and temperature, process fluid and service conditions, end connection and thread standard, body, trim, seat and packing material requirements, applicable design and testing standards, and required material certificates and inspection records. These details help distinguish small-bore instrumentation valves from general industrial valves and establish the correct configuration for the intended installation.
SS 316 instrument valves are selected according to the required valve design, nominal size, pressure class, end connection and applicable standard for the project.
| Parameter | Specification |
|---|---|
| Material Grade | Stainless Steel 316 |
| UNS Designation | S31600 |
| Werkstoff No. | 1.4401 |
| Related Grade | SS 316L, UNS S31603 |
| Forged Material Reference | ASTM A182 F316 / F316L |
| Cast Material Reference | ASTM A351 CF8M / CF3M |
| Bar-Stock Material Reference | ASTM A276 or ASTM A479, as applicable |
| Valve Types | Needle, ball, globe, check, plug, hydraulic and manifold valves |
| Connection Options | Compression/ferrule, threaded, socket-weld and flanged, depending on design |
| Thread Options | NPT, BSPP and other specified thread forms, where available |
| Multiport Configurations | 2-way, 3-way, 4-way and 5-way, where offered |
| Operating Pressure and Temperature | According to the selected valve design and product rating |
| Inspection and Testing | According to the applicable standard and purchase order |
| Documentation | Material certificates and inspection reports, as agreed |
The chemical composition of SS 316 is controlled to provide enhanced corrosion resistance, particularly in chloride and other aggressive environments, compared with SS 304.
| Element | Purpose in Material Assessment |
|---|---|
| Chromium (Cr) | Contributes to corrosion resistance |
| Nickel (Ni) | Supports the austenitic structure |
| Molybdenum (Mo) | Contributes to resistance in certain corrosive environments |
| Carbon (C) | Must meet the specified grade limit |
| Manganese (Mn) | Controlled by the applicable material specification |
| Silicon (Si) | Controlled by the applicable material specification |
| Phosphorus (P) | Controlled by the applicable material specification |
| Sulphur (S) | Controlled by the applicable material specification |
The following properties should be verified against the applicable product form and material specification:
| Property | Verification Requirement |
|---|---|
| Density | Confirm the reference value required for engineering calculations |
| Tensile Strength | Check the specified minimum for the applicable product form |
| Yield Strength | Check the specified yield requirement and test condition |
| Elongation | Verify the required minimum for the product form and condition |
| Hardness | Confirm where required by the material or purchase specification |
| Temperature Suitability | Check the valve design, material limits and seal ratings |
| Grade | UNS Designation | Forged Component Reference | Cast Component Reference | Bar-Stock Reference |
|---|---|---|---|---|
| SS 316 | S31600 | ASTM A182 F316 | ASTM A351 CF8M | ASTM A276 or ASTM A479 Type 316, as applicable |
| SS 316L | S31603 | ASTM A182 F316L | ASTM A351 CF3M | ASTM A276 or ASTM A479 Type 316L, as applicable |
Different valve designs serve different functions within an instrumentation or process system. The selected valve should match the required flow path, shut-off function, connection and operating conditions.
| Valve Type | Description |
|---|---|
| SS 316 Needle Valves | Used for controlled flow adjustment in suitable instrumentation and small-bore process lines. |
| SS 316 Instrument Ball Valves | Used primarily for on-off isolation, with port arrangement and seat materials selected for the service. |
| SS 316 Check Valves | Designed to permit flow in the intended direction and help prevent reverse flow. |
| SS 316 Globe Valves | Used for isolation and flow regulation in designs suitable for the application. |
| SS 316 Plug Valves | Used for flow control or isolation through a rotating plug, depending on the design. |
| SS 316 Hydraulic Valves | Used in hydraulic systems when the selected model and pressure rating meet the system specification. |
| SS 316 Manifold Valves | Used to connect pressure instruments to process lines and provide specified isolation, equalisation or venting functions. |
| SS 316 Multiport Valves | Provide multiple flow paths in configurations designed for the intended system. |
Connection options include single-ferrule and double-ferrule compression, threaded ends (NPT, BSPP, BSPT), socket-weld ends, flanged ends and hydraulic connections (SAE or ISO 6149 where specified).
For quotation accuracy, provide the valve type, size, pressure class, end connection, quantity and any inspection requirements. These details determine the applicable manufacturing and documentation requirements.
Select SS 316 Instrument Valve parameters and click the "Generate Enquiry Summary" button to prepare your specification for quotation.
The following configurations are commonly specified for instrumentation applications. Selection depends on the required flow path, isolation function and instrument connection.
| Configuration | Selection Considerations |
|---|---|
| Needle Valve | Flow adjustment, stem design, seat construction and operating pressure |
| Ball Valve | On-off isolation, port arrangement, seat material and leakage requirements |
| Two-Way Valve | Two-port flow path with an open or closed function, depending on design |
| Three-Way Valve | Switching or diverting flow between designated ports |
| Four-Way Valve | Multiple flow paths according to the specified valve design |
| Five-Way Manifold | Instrumentation arrangements requiring specified isolation, equalisation and venting functions |
| Gauge Valve | Instrument connection, mounting arrangement and pressure requirements |
Pressure and temperature ratings depend on valve design, size, body construction, connection, seat materials and the applicable standard. The material designation SS 316 alone does not establish the valve's allowable operating limits.
The supplied reference material lists the following examples for particular product types. These figures are reference values and must be verified against the exact valve model before being used in a purchase specification.
| Reference Product or Rating | Published Reference Value |
|---|---|
| Certain Instrumentation Valves | 3000 psig, approximately 206 bar |
| Certain High-Pressure Valves | Up to 6000 psi, subject to model and size |
| Certain Instrument Valve Models | Up to 400 bar, subject to model and connection |
| Reference Temperature Range | -54°C to 232°C (-65°F to 450°F), where supported by the selected design |
| CF8M Valve CWP Examples | 400, 600 and 1000 psi, depending on product |
| CF8M Valve SWP Examples | 150 and 200 psi, depending on product |
| CF8M Valve WWP Example | 300 psi, depending on product |
The relevant standards depend on valve type, construction and connection. The following standards appear in the supplied technical references and may apply to particular designs.
Inspection and documentation requirements should be established before ordering. Depending on the selected product and agreed inspection plan, the documentation package may include:
SS 316 instrument valves may be considered for a range of industrial systems when the material and valve configuration are compatible with the service conditions.
SS 316 is not universally resistant to every chemical or chloride environment. Material suitability should be evaluated against fluid composition, temperature, concentration, exposure conditions and the required service life.
Ganpat Metal handles SS 316 instrument valve enquiries for industrial buyers and project procurement teams requiring defined material grades, valve dimensions and connection specifications.
For a quotation, provide the valve design, nominal size, pressure class, end connection and operating conditions. Include the governing valve standard, technical drawing or part number where available. These details help establish the required configuration and identify the inspection and documentation package for the order.
Ganpat Metal Pvt. Ltd. handles industrial metal product enquiries for domestic and international markets, including destinations such as:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
Share the following details with Ganpat Metal for a quotation:
| Requirement | Details to Provide |
|---|---|
| Material Grade | SS 316 / UNS S31600 or SS 316L / UNS S31603, as specified |
| Valve Type and Configuration | Needle / Ball / Globe / Check / Plug / Hydraulic / Manifold / Multiport |
| Nominal Valve Size or Tube OD | Required size |
| Operating Pressure and Temperature | As specified for the service |
| End Connection and Thread Standard | Compression / NPT / BSPP / BSPT / Socket Weld / Flanged / Hydraulic |
| Process Medium and Service Conditions | Intended process conditions |
| Body, Trim, Seat and Packing Materials | As specified |
| Quantity | Required quantity |
| Applicable Standards | Design and testing standards |
| Documentation | Material certificates and inspection requirements |
| Delivery | Destination and required schedule |
Ganpat Metal Pvt. Ltd. handles enquiries for industrial valve requirements involving different material grades, valve functions and connection arrangements. For other grades and configurations, visit our SS Instrumentation Valves Manufacturer and Supplier in India category page to review the broader product range.
