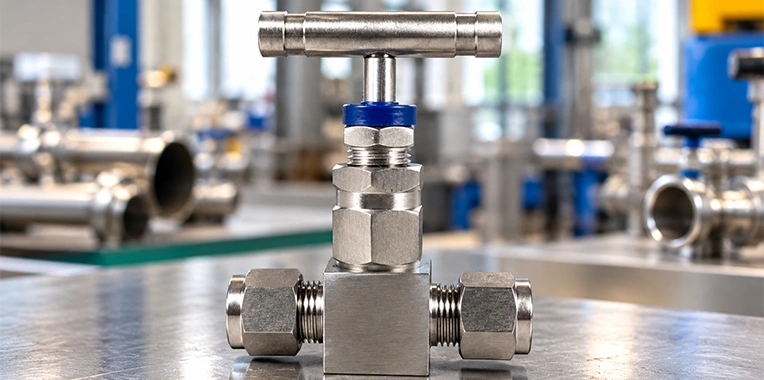

Ganpat Metal Pvt. Ltd. handles enquiries for SS 316L Instrument Valves Manufacturer and Supplier in India requirements for industrial instrumentation, process piping and fluid control systems. Buyers can specify the valve type, material grade, size, pressure rating, end connection and inspection requirements according to their project specifications.
Stainless Steel 316L, identified by UNS S31603, is a low-carbon austenitic stainless steel containing chromium, nickel and molybdenum. Its lower carbon limit distinguishes it from SS 316 and can be relevant when selecting materials for welded assemblies and industrial process equipment. The correct instrument valve depends on the operating conditions, process medium, connection arrangement and required flow function. Send your technical datasheet, valve schedule or engineering drawing to Ganpat Metal to discuss your SS 316L instrument valve enquiry.
SS 316L instrument valves are used in instrumentation arrangements where the specified material, valve design and connection are suitable for the operating environment. Depending on the design, instrumentation valves can isolate a line, regulate flow, direct fluid between ports or connect pressure instruments to a process system.
The low-carbon composition of SS 316L is an important consideration for applications involving welding. However, the suitability of the complete valve assembly also depends on its design, manufacturing process, wetted components and service conditions.
When specifying SS 316L instrumentation valves, buyers should identify the required valve function and flow arrangement, material grade and applicable product specification, valve size or tubing outside diameter, operating and maximum design pressure, operating temperature range, process medium and chemical compatibility, end connection and thread standard, seat, seal and packing materials, applicable design and testing standards, and material traceability and inspection documentation. These details help establish whether the selected valve configuration is suitable for the intended installation.
SS 316L instrument valves are selected according to the required valve design, nominal size, pressure class, end connection and applicable standard for the project.
| Parameter | Specification |
|---|---|
| Material Grade | Stainless Steel 316L |
| UNS Designation | S31603 |
| Werkstoff No. | 1.4404 / 1.4435, depending on the specified grade |
| ASTM Material References | ASTM A276, A351, A494 and A961, where applicable to the product or component |
| ASME Material References | ASME SA276, SA351, SA494 and SA961, where applicable |
| Temperature Rating with PTFE | Reference value up to 450°F (232°C), subject to the specific valve and seal design |
| Temperature Rating with Grafoil | Reference value up to 700°F (371°C), subject to the specific valve and seal design |
| Working Pressure | Reference value up to 6000 PSIG for certain valve designs |
| Listed Pressure Classes | 150, 300, 600, 800 and 1500, where applicable to the selected product |
| End Connections | Male and female NPT, BSPT, socket weld and dual-ferrule tube connections, subject to availability |
| Connection Configurations | Male-to-female and other specified connection arrangements |
| Valve Types | Needle, ball, check, manifold and other specified instrumentation valve configurations |
| Testing | According to the applicable valve standard and purchase specification |
| Documentation | Material certificates and inspection reports, as agreed |
The chemical composition of SS 316L is controlled to provide enhanced corrosion resistance with a lower carbon content suitable for welded assemblies.
| Element | SS 316L Reference Composition |
|---|---|
| Carbon (C) | 0.035% max. |
| Manganese (Mn) | 2.00% max. |
| Silicon (Si) | 1.00% max. |
| Phosphorus (P) | 0.045% max. |
| Sulphur (S) | 0.030% max. |
| Chromium (Cr) | 16.00–18.00% |
| Molybdenum (Mo) | 2.00–3.00% |
| Nickel (Ni) | 10.00–14.00% |
| Iron (Fe) | Balance |
The reference mechanical and physical properties for SS 316L are as follows:
| Property | SS 316L Reference Value |
|---|---|
| Density | 8.0 g/cm³ |
| Melting Point | Approximately 1399°C (2550°F) |
| Tensile Strength | 75,000 psi / 515 MPa |
| Yield Strength at 0.2% Offset | 30,000 psi / 205 MPa |
| Elongation | 35% |
| Standard or Designation System | SS 316L Reference |
|---|---|
| UNS | S31603 |
| Werkstoff No. | 1.4404 / 1.4435 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| AFNOR | Z3CND17-11-02 / Z3CND18-14-03 |
| EN | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Different valve configurations provide different flow-control and isolation functions. The selected design should correspond to the process arrangement and the required operating conditions.
| Valve Type | Description |
|---|---|
| SS 316L Needle Valves | Used for controlled adjustment of flow in suitable instrumentation and small-bore process lines. |
| SS 316L Ball Valves | Used for on-off isolation where the valve's port arrangement, seat design and pressure rating suit the service. |
| SS 316L Check Valves | Designed to permit flow in the intended direction and help prevent reverse flow. |
| SS 316L Manifold Valves | Connect pressure instruments to process lines and provide specified isolation, equalisation or venting functions. |
| SS 316L Multiport Valves | Provide multiple flow paths according to the valve design. |
| SS 316L Hydraulic Valves | Used in hydraulic systems when the selected design and rated pressure meet the system requirements. |
| SS 316L Globe Valves | Used for isolation or flow regulation in designs suitable for the intended service. |
| SS 316L Plug Valves | Use a rotating plug to control or isolate flow according to the valve configuration. |
Availability of each type, size and pressure rating should be confirmed against the product specification before ordering. Connection options include Male/Female NPT, BSPT, Socket Weld and Dual-Ferrule Tube Connections.
For quotation accuracy, provide the valve type, size, pressure class, end connection, quantity and any inspection requirements. These details determine the applicable manufacturing and documentation requirements.
Select SS 316L Instrument Valve parameters and click the "Generate Enquiry Summary" button to prepare your specification for quotation.
The following configurations are commonly specified for instrumentation applications. Selection depends on the required flow path, isolation function and instrument connection.
| Valve Configuration | Primary Selection Consideration |
|---|---|
| Needle Valve | Flow adjustment, stem design, seat construction and rated pressure |
| Ball Valve | On-off isolation, port arrangement, seat material and leakage requirements |
| Two-Way Valve | Two-port flow path and isolation function |
| Three-Way Valve | Switching or diverting flow between designated ports |
| Multiport Valve | Number of ports and required flow paths |
| Instrument Manifold | Instrument connection, isolation, equalisation and venting requirements |
| Gauge Valve | Gauge connection, mounting arrangement and pressure rating |
Pressure and temperature ratings depend on valve design, size, body construction, connection, seat materials and the applicable standard. The material designation SS 316L alone does not establish the valve's allowable operating limits.
| Rating Parameter | Reference Information |
|---|---|
| Working Pressure | Up to 6000 PSIG for certain referenced valve designs |
| Higher-Pressure Designs | Some products may be available for higher pressures; confirmation is model-specific |
| PTFE Temperature Reference | Up to 450°F (232°C), subject to the complete valve design |
| Grafoil Temperature Reference | Up to 700°F (371°C), subject to the complete valve design |
| Listed Pressure Classes | 150, 300, 600, 800 and 1500, where applicable |
| Final Allowable Rating | Must be verified from the selected valve manufacturer's pressure-temperature data |
Testing and inspection should be established according to the selected valve design, applicable standard and purchase order. The documentation package should correspond to the actual component and the inspection scope agreed before supply.
Material certification and valve performance testing serve different purposes. A material certificate supports grade identification and traceability, while pressure and leakage tests assess performance under the specified test conditions. Any required testing standard, acceptance criteria, inspection agency and documentation format should be identified at the enquiry stage.
Choosing the correct valve involves more than confirming the material grade. The design must suit the process conditions, connection arrangement and required function.
SS 316L instrumentation valves may be considered for industrial applications where the material, valve construction and sealing system are compatible with the process.
The final valve selection should account for process-fluid compatibility, cleaning requirements, operating pressure and temperature, and the applicable industry or project specification.
Ganpat Metal handles SS 316L instrument valve enquiries for industrial buyers and project procurement teams requiring defined material grades, valve dimensions and connection specifications.
For a quotation, provide the valve design, nominal size, pressure class, end connection and operating conditions. Include the governing valve standard, technical drawing or part number where available. These details help establish the required configuration and identify the inspection and documentation package for the order.
Ganpat Metal Pvt. Ltd. handles industrial metal product enquiries for domestic and international markets, including the following destinations:
India
Brazil
New Zealand
Australia
Bangladesh
Malaysia
UAE
Saudi Arabia
Oman
Egypt
Spain
Russia
Kazakhstan
For export enquiries, provide the destination country, quantity, delivery schedule, packaging instructions and required shipping or inspection documents. Any destination-specific certification, marking or compliance requirements should be confirmed before the order is finalised.
Providing complete technical details helps clarify the required valve configuration, material specification and inspection scope before an offer is prepared. Product-specific availability and ratings should be confirmed against the final quotation and technical documentation.
Share the following details with Ganpat Metal for a quotation:
| Requirement | Details to Provide |
|---|---|
| Material Grade | SS 316L / UNS S31603 |
| Required Valve Type | Needle / Ball / Check / Manifold / Multiport / Hydraulic / Globe / Plug |
| Valve Size or Tubing OD | Required size |
| Pressure Rating and Design Pressure | As specified for the service |
| Operating Temperature | Intended process conditions |
| Process Medium | Fluid composition and compatibility requirements |
| End Connection and Thread Standard | Male/Female NPT / BSPT / Socket Weld / Dual-Ferrule / Flanged |
| Seat, Seal and Packing Requirements | As specified |
| Quantity | Required quantity |
| Applicable Standards | Design and testing standards |
| Documentation | Material certificates and inspection requirements |
| Delivery | Destination and required schedule |
Ganpat Metal Pvt. Ltd. handles enquiries for industrial valve requirements involving different material grades, valve functions and connection arrangements. For related product requirements, visit our SS Instrumentation Valves Manufacturer and Supplier in India category page to review the broader range of instrumentation valve options.
